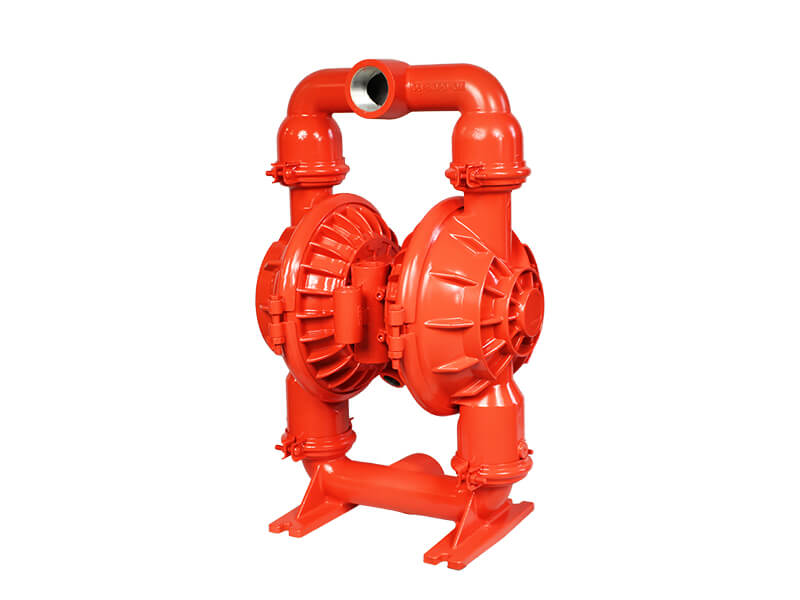

The EFT8 diaphragm pump delivers 617 LPM (163 USGPM) free flow, with suction lift up to 6.4 metres dry and 9.5 metres wet. Maximum working pressure is 8.3 Barg (120 Psig).
Available in aluminium (33.1 kg). Diaphragm and check valve options include PTFE, Santoprene, EPDM, Neoprene, FKM, Hytrel, Nitrile, Stainless Steel, Polyurethane, Alloy C, and Mild Steel.
The EFT8 is designed for heavy‑duty transfer in chemical, mining, and wastewater industries. It handles particles up to 6.4 mm (1/4″).
Got a question about diaphragm pumps? Find the answers to our most common questions here.
Can’t find your answer? Get in touch with our team.
The max free flow on water at 20 degrees celsius is 617 LPM (163 USGPM).
Maximum working pressure is 8.3 Barg (120 Psig).
Aluminium body with diaphragm options including PTFE, Santoprene, and EPDM.
Yes, up to 6.4 mm (1/4″).
Absolutely! If you’re unsure which pump is the best fit for your application, our team is here to help. You can pop up to our live chat for instant support, or simply send your requirements and pump details to sales@tfpumps.com. One of our experts will quickly recommend the most suitable pump for your needs.
