If you have ever moved water through a pipe at any scale, the odds are a centrifugal pump did the work. They are the most widely used pump type in industry, agriculture and building services, spinning an impeller to turn motor energy into flow and pressure. Clean water, mild chemicals, hot liquids, lightly contaminated fluids; a centrifugal pump handles most of what a typical site throws at it.
We supply centrifugal pumps from the leading European names in cast iron, stainless steel and engineered plastic, and we can source other brands when a duty needs something specific. The ranges are below, or talk it through with us on +44 1332 913500.
We also cover Magnetic Drive, Flexible Impeller and Multistage pumps on their own pages.
A centrifugal pump is a rotodynamic pump that moves liquid with a spinning impeller. Fluid enters at the centre of the impeller, gets flung outward by centrifugal force, and passes into a volute or diffuser casing where that speed becomes pressure. The output is a smooth, continuous flow at the head and rate the system needs.
What makes them so common is how little there is to go wrong. With essentially just an impeller and a shaft as moving parts, they are low-maintenance and long-lived, and they handle clean or mildly dirty liquids at moderate to high flow rates more cheaply than any other design.
The impeller sets the pump’s character. Its diameter, vane shape and configuration determine the flow, the head and how well it copes with solids. Impellers come open, semi-open or closed, each a different trade-off between efficiency and solids handling. The mechanics of all this, how the stages and casing turn rotation into pressure, are covered in our guide: How Do Centrifugal Pumps Work?
End suction pumps are the default. Liquid comes in axially through the suction eye and leaves radially from the top of the casing. Compact, affordable and easy to service, they cover the bulk of commercial and industrial clean-water duty.
Self priming centrifugal pumps clear air from the suction line and prime themselves, so they work where the pump sits above the liquid and the suction line may hold air at start-up. A self priming centrifugal pump recirculates liquid internally to expel that air before settling into normal pumping, which suits surface-mounted installs, tank emptying and irrigation.
Stainless steel centrifugal pumps are built in 304 or 316 for corrosion resistance, hygiene and durability. You specify a stainless steel centrifugal pump when the liquid is aggressive or hot, or when the application demands sanitary construction: food and beverage, pharmaceutical, chemical processing, potable water.
Close-coupled and long-coupled designs differ in how the pump meets the motor. Close-coupled mounts the impeller straight onto the motor shaft for a tight footprint; long-coupled uses a separate bearing frame and coupling so the motor can be swapped independently. Which one fits depends on space, maintenance access and motor spec.
Selection comes down to matching the pump curve to your duty point, where required flow meets total head. You need the flow in m³/hr or l/s, the total head (static lift plus friction losses plus residual pressure), the liquid and its temperature, and the power supply. Material follows the liquid: cast iron for clean water, stainless for aggressive or hygienic duty, engineered plastics for particular chemical resistance.

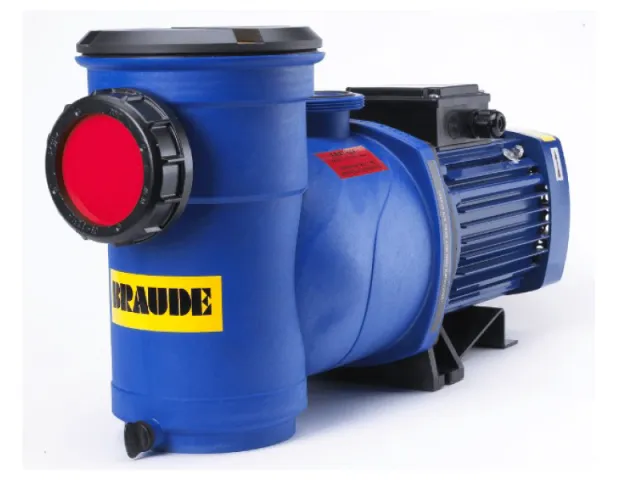

We supply from Braude, Calpeda, Ebara, Enviroflex, Lowara, Pedrollo, Pentair, Pentax and Varisco, and will look further afield if a project calls for it. Give us the duty on +44 1332 913500 and we will pin down the right pump.
For the engineering behind the pumps, two guides on our blog go deeper:
If your questions have not been answered here, get in touch with our team for more information.
Centrifugal pumps are used to move liquids through piping systems. Common applications include water supply and distribution, industrial process water, irrigation, HVAC systems, chemical transfer, and general fluid handling across virtually every industry. They are the default choice for any duty that involves moving clean or mildly contaminated liquids at moderate to high flow rates.
A centrifugal pump uses a rotating impeller to impart velocity and pressure to the liquid continuously. A positive displacement pump traps a fixed volume of liquid and forces it through the discharge. Centrifugal pumps suit high-flow, low-viscosity applications; positive displacement pumps suit high-viscosity liquids or duties requiring precise metering.
A self-priming centrifugal pump can evacuate air from the suction line and prime itself automatically without manual intervention. It recirculates liquid internally to expel air before entering normal pumping mode. This makes it ideal for surface-mounted installations, tank emptying, irrigation from open water sources, and any application where the suction line may contain air on start-up.
Choose stainless steel when the liquid is corrosive, high-temperature, or when hygienic construction is required, for example in food and beverage, pharmaceutical, chemical processing and potable water applications. 304 stainless suits most clean-water and mildly corrosive duties; 316 stainless offers greater resistance to chlorides and aggressive chemicals.
The centrifugal pump impeller is the rotating component that imparts energy to the liquid. As it spins, liquid is drawn into the centre (eye) and thrown outward along the vanes by centrifugal force, increasing velocity and pressure. The impeller’s diameter, shape, number of vanes and whether it is open, semi-open or closed determine the pump’s flow rate, head and solids-handling capability.
A well-specified, correctly installed centrifugal pump handling clean water typically lasts 10–20 years with routine maintenance. Pumps handling abrasive or corrosive liquids may have shorter service lives. Key wear items are the mechanical seal, bearings and impeller, all of which are serviceable without replacing the whole pump.
