Sale!

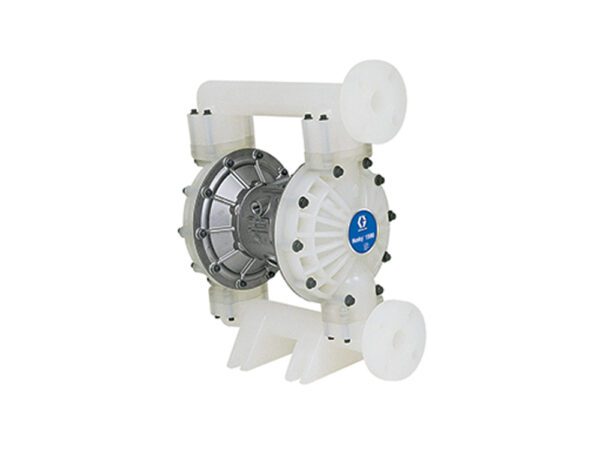

Graco¨ DU5A11 Huskyª 1 1/2" Diaphragm Pump With Stainless Steel Centre Section and PVDF Body (PVDF Seats

Graco 24B758 With PVDF wetted body and PTFE diaphragms (1 1/2″ – Flange)

Original price was: £14,457.60.Current price is: £10,120.80. Inc VAT

Excluding VAT: £8,434.00

Free UK Shipping

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed centre air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Product Details

  • Brand: Graco
  • Part Number: 58
  • Pump Code: 24B758
  • Family: Husky
  • Power Source: Air Operated
  • Max Flow Rate: 341 LPM
  • Seats/Balls/Diaphragms: PVDF/PTFE/PTFE Overmoulded
  • Body Material: PVDF
  • Centre Section: Stainless Steel
  • Fluid Outlet: 1 1/2""
  • Porting: End Flange ANSI/DIN
  • Air Inlet: 1/2"
  • Max Solids: 4.8mm
  • Material: PVDF

Resources

Datasheet
Chemical Guide

Parts / Repair Kits

Valve Seat Kit: D0CA00
Valve Ball Kit: D0B030
Diaphragms Kit: 253627

Air Section Repair Kit: 255061
Filter Reguator: P393D4-604
