Graco Husky 1050 Diaphragm Pump 1 Inch Flange PP / PTFE – 649006

Name: Graco Husky 1050 Diaphragm Pump 1 Inch Flange PP / PTFE - 649006
SKU: 649006
Availability: InStock

Original price was: £1,647.00.Current price is: £1,153.00.

£1,153.00 Ex VAT

Free UK Shipping

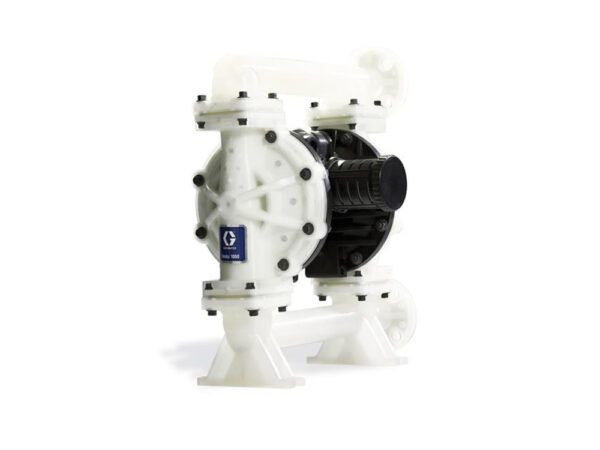

Graco Husky 1050 1 inch polypropylene diaphragm pump with ANSI/DIN centre flanges, polypropylene seats, PTFE balls and two-piece PTFE/EPDM diaphragms, PTFE o-rings, and a polypropylene centre section. Flow rates up to 189 LPM. Part Number: 649006

Product Overview

Brand

Graco

Family

Husky

Product Type

Pump

Pump Type

Diaphragm

Range

Husky 1050

Part Number

649006

Pump Code

1050P-PP01AP1PPPTPTPT

Resources

Technical Specifications

Balls

PTFE

Body Material

Polypropylene

Centre Section

Polypropylene

Diaphragms

PTFE / EPDM Two-Piece

Porting

Centre Flange ANSI / DIN

Power

Air Operated

Seats

Polypropylene

Size

Fluid Inlet

Air Exhaust

3/4" NPT(F)

Fluid Section

Polypropylene

Fluid Outlet

Flow Rate

189 LPM

Air Inlet

1/2" NPT(F)

Max Temperature

66 Degrees Celsius

Noise Level

90 dBa

Fluid Pressure Range

Max: 125 PSI

Air Pressure Range

20-125 PSI

Max Solids

3.2mm
