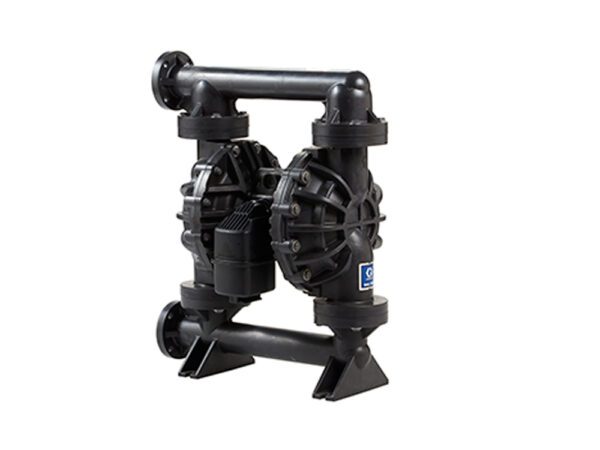

Graco 653548 With PVDF wetted body and Santoprene diaphragms (2″ – Flange)
Original price was: £10,880.40.£7,616.40Current price is: £7,616.40. Inc VAT
Excluding VAT: £6,347.00
Free UK Shipping
The Husky 2200 air-operated diaphragm pump features a single piece polypropylene centre section for increased reliability and chemical compatibility, plus a patented, high-reliability modular air valve that is online serviceable. This diaphragm pump is designed with a reinforced frame for improved reliability and will help to eliminate fluid leakage.
Product Details
- Brand: Graco
- Part Number: 48
- Pump Code: 653548
- Family: Husky
- Power Source: Air Operated
- Max Flow Rate: 757 LPM
- Seats/Balls/Diaphragms: PVDF/PTFE/Santoprene
- Body Material: PVDF
- Centre Section: Polypropylene
- Fluid Outlet: 2"
- Porting: End Flange ANSI/DIN
- Air Inlet: 3/4"
- Max Solids: 6.3mm
- Material: PVDF
Parts / Repair Kits
Valve Seat Kit: 24V247Valve Ball Kit: 24V251
Diaphragms Kit: 24V242
Air Section Repair Kit: 24K860
Filter Reguator: P393E4-604
