Home Graco AODD Husky Graco Husky 15120 Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PP / PTFE – 654536

Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PP / PTFE – 654536

Name: Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PP / PTFE - 654536
SKU: 654536
Availability: InStock

£0.00

Unavailable Online: Enquire for Details

Free UK Shipping

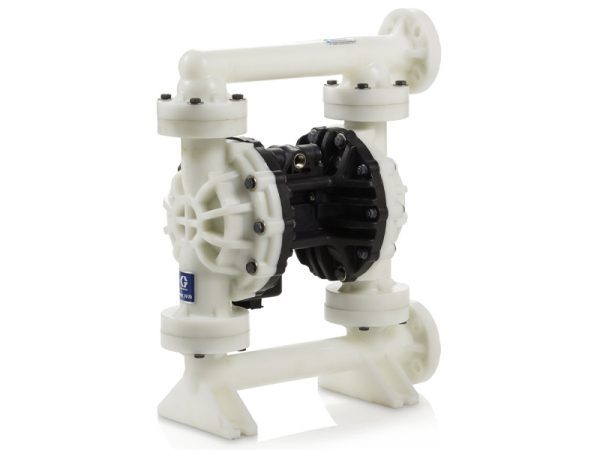

Graco Husky 15120 1 1/2 inch polypropylene diaphragm pump with ANSI/DIN end flanges, PVDF seats, PTFE balls and two-piece PTFE/Santoprene diaphragms, PTFE o-rings, and a polypropylene centre section. Flow rates up to 454 LPM. Part Number: 654536
Please note this pump is obsolete, the closest replacement model is 654511. Please click here to view. Always check compatibility before purchasing.

Product Overview

Brand

Graco

Family

Husky

Product Type

Pump

Pump Type

Diaphragm

Range

Husky 15120

Part Number

654536

Pump Code

15120P-PP01AP2PVPTPTPT

Resources

Technical Specifications

Balls

PTFE

Body Material

Polypropylene

Centre Section

Polypropylene

Diaphragms

PTFE / Santoprene Two-Piece

Porting

End Flange, ANSI/DIN

Power

Air Operated

Seats

PVDF

Size

1 1/2"

Max Head

4.9m

Fluid Inlet

1 1/2"

Air Exhaust

Fluid Section

Polypropylene

Fluid Outlet

1 1/2"

Flow Rate

454 LPM

Air Inlet

1/2" NPT(F)

Max Temperature

66 Degrees Celsius

Noise Level

102.1 dBa

Fluid Pressure Range

Max: 125 PSI

Air Pressure Range

20-125 PSI

Max Solids

6.3mm
