Home Graco AODD Husky Graco Husky 15120 Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PVDF / PTFE – 654541

Sale

Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PVDF / PTFE – 654541

Name: Graco Husky 15120 Diaphragm Pump 1 1/2 Inch Flange PVDF / PTFE - 654541
SKU: 654541
Availability: InStock

Original price was: £8,748.00.Current price is: £6,124.00.

£6,124.00 Ex VAT

Free UK Shipping

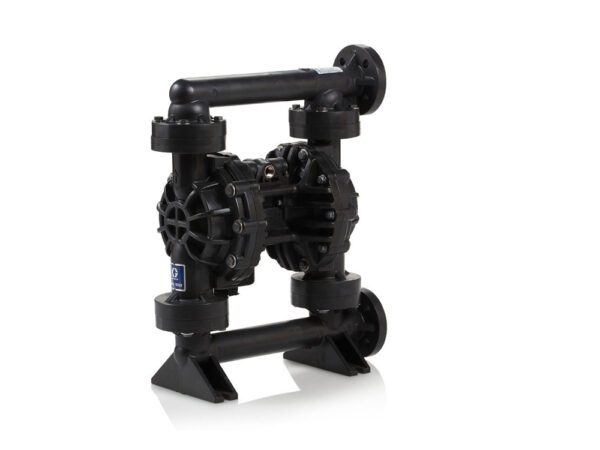

Graco Husky 15120 1 1/2 inch PVDF diaphragm pump with ANSI/DIN end flanges, stainless steel seats, PTFE balls and two-piece PTFE/Santoprene diaphragms, PTFE o-rings, and a polypropylene centre section. Flow rates up to 454 LPM. Part Number: 654541

Product Overview

Brand

Graco

Family

Husky

Product Type

Pump

Pump Type

Diaphragm

Range

Husky 15120

Part Number

654541

Pump Code

15120F-PP01AF2SSPTPTPT

Resources

Technical Specifications

Balls

PTFE

Body Material

PVDF

Centre Section

Polypropylene

Diaphragms

PTFE / Santoprene Two-Piece

Porting

End Flange, ANSI/DIN

Power

Air Operated

Seats

Stainless Steel

Size

1 1/2"

Max Head

4.9m

Fluid Inlet

1 1/2"

Air Exhaust

Fluid Section

PVDF

Fluid Outlet

1 1/2"

Flow Rate

454 LPM

Air Inlet

1/2" NPT(F)

Max Temperature

82 Degrees Celsius

Noise Level

102.1 dBa

Fluid Pressure Range

Max: 125 PSI

Air Pressure Range

20-125 PSI

Max Solids

6.3mm
