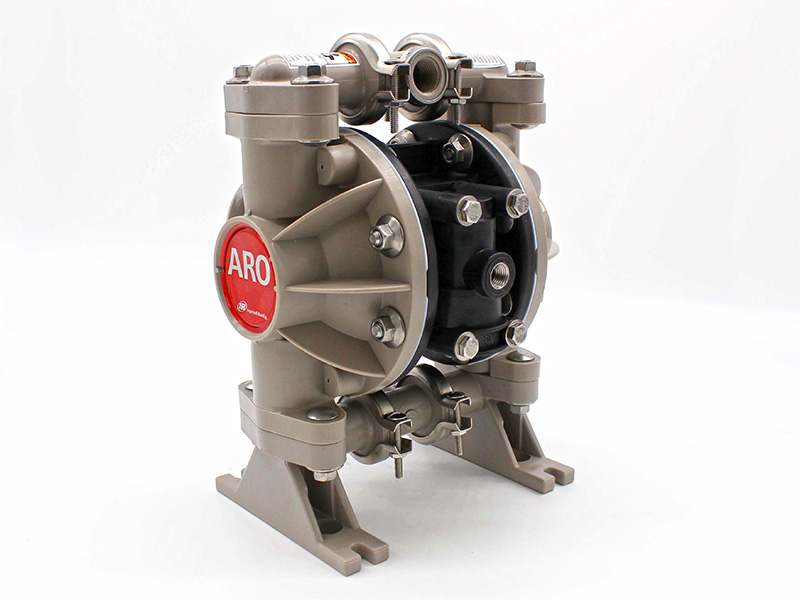

Aro¨ 666053-389 Diaphragm Pump With Polypropylene Centre Section & Body (Polypropylene Seats

Aro 666053-388 With Polypropylene wetted body and Polyurethane diaphragms (1/2″ – NPT / BSP Hybrid) – 81434763

Original price was: £1,104.00.Current price is: £993.60. Inc VAT

Excluding VAT: £828.00

Free UK Shipping

Part of Aro’s Compact Series of pumps, their 1/2” classic pumps feature big performance in a small package, with flow rates up to 13 GPM (49.2 LPM) and a wide range of material and porting configurations.

Product Details

  • Brand: Aro
  • Part Number: 4763
  • Family: Classic Series
  • Power Source: Air Operated
  • Max Flow Rate: 49 LPM
  • Seats/Balls/Diaphragms: Polypropylene/Polyurethane/Polyurethane
  • Body Material: Polypropylene (3 - Piece Manifold)
  • Centre Section: Polypropylene
  • Fluid Inlet: 1/2"
  • Fluid Outlet: 1/2"
  • Porting: NPT/BSPT Hybrid
  • Air Inlet: 1/4"
  • Max Solids: 2.4mm
  • Material: Polypropylene

Resources

Datasheet
Manual
Chemical Guide

Parts / Repair Kits

Valve Seat : 93098-1
Valve Ball : 93100-8
Diaphragms : 93112

Fluid Section Repair Kit: 637140-88
Air Section Repair Kit: 637141
Filter Reguator: P391B4-604
