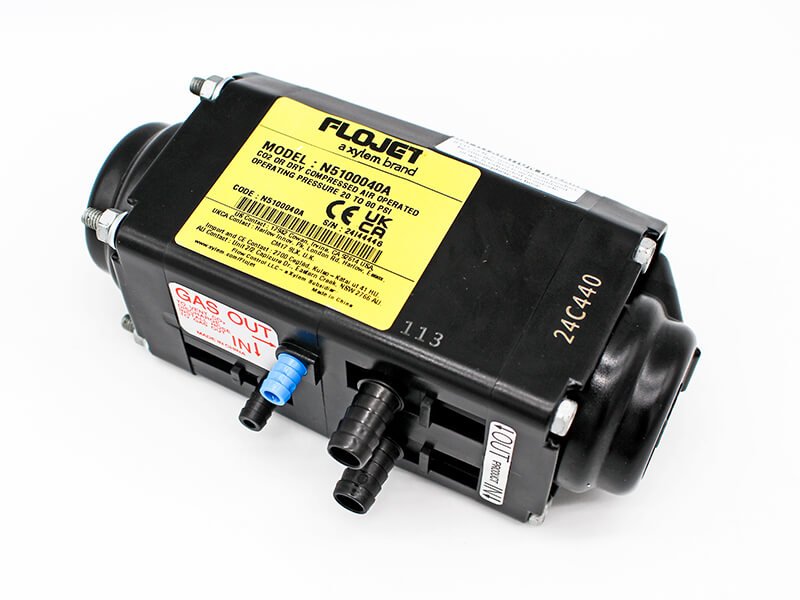

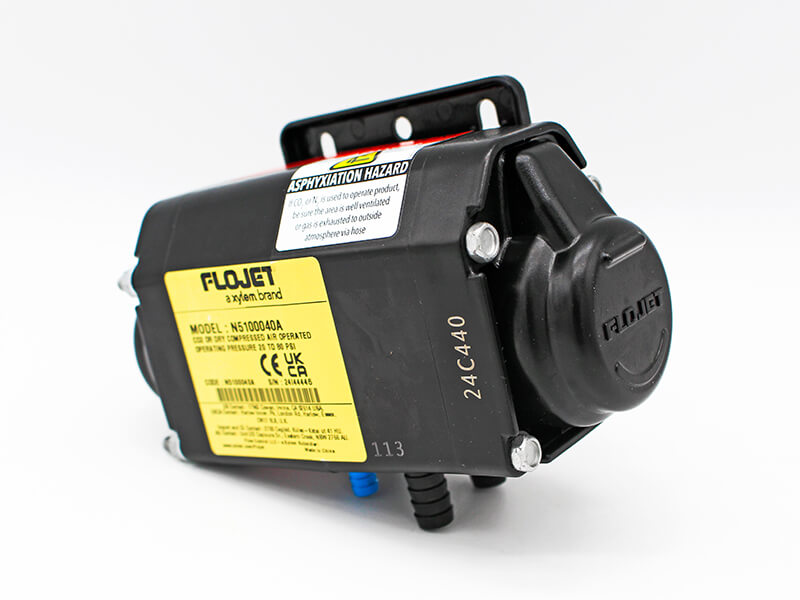

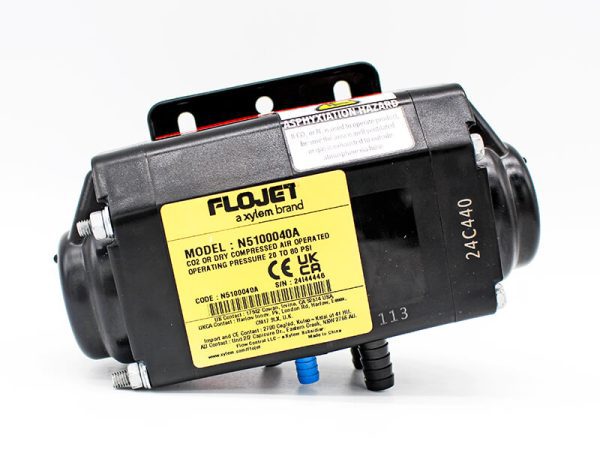

Flojet 3/8″ 5100 Series Air Driven Pump – N5100040A

£105.60 Inc VAT

Excluding VAT: £88.00

Flojet air operated diaphragm pumps offer excellent self-priming capability. Pumps can be located above the supply tank. Suction-side foot valve is recommended for best operation. Liquid pressure is regulated by supply air pressure. No bypass or pressure relief plumbing is necessary. Choice of Santoprene, Buna, or Viton elastomers provide a wide range of chemical compatibility. Quick disconnect liquid and gas port fittings provided for easy installation.

Product Details

  • Brand: Flojet
  • Part Number: 0040A

Air Driven Diaphragm Pump
Santoprene diaphragm, EPDM Valves
Connections: – Fluid, 9.5mm (3/8″) hose – Air, 6mm (1/4″) hose
Dimensions: – 152mm long, 60mm wide, 102mm high
Output: – infinately variable, up to 7.3 litres/minute (1.6 gallons/minute). Maximum pressure 5.2bar (75psi)
Auto demand starts pump when discharge valve is opened
Self-priming up to 4.5m
Pump can run-dry and handle liquids up to 49ºC (120ºF)
Max. Air Supply Pressure 5.6bar (80psi)
