Home Aro Piston Pumps Aro AF0603M11KS48 3:1 Ratio 4 Ball Piston Pump Stainless Steel – 47083365

Sale

Aro AF0603M11FF48 3:1 Ratio 4 Ball Piston Pump Stainless Steel - 15335433

Aro AF0603M11KS48 3:1 Ratio 4 Ball Piston Pump Stainless Steel – 47083365

Name: Aro AF0603M11KS48 3:1 Ratio 4 Ball Piston Pump Stainless Steel - 47083365
SKU: 47083365
Availability: InStock

Original price was: £11,130.00.Current price is: £10,574.00.

£10,574.00 Ex VAT

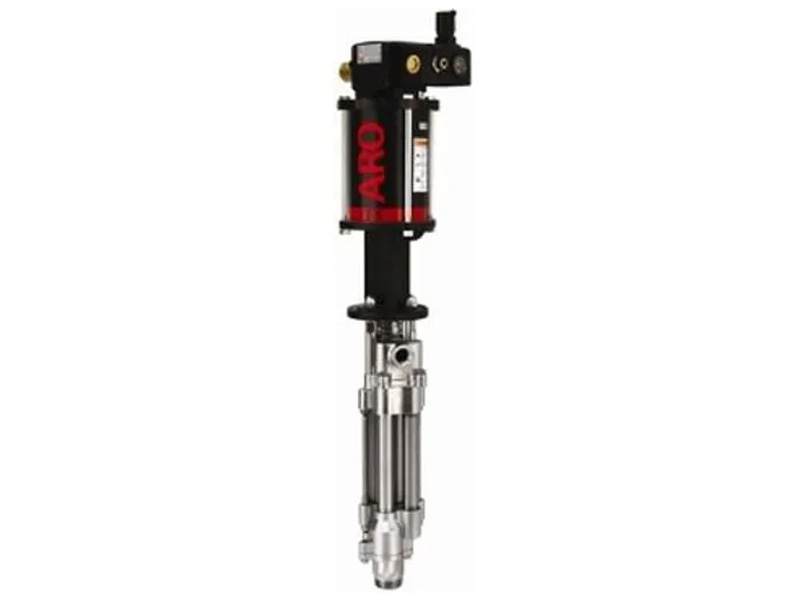

The ARO AF0603M11KS48 3:1 four-ball air-operated piston pump in Stainless Steel construction, optimally designed for high-volume transfer of light to medium viscosity fluids. With a double-acting design, material is delivered to the pump outlet on every stroke. Flows up to 110.8 LPM at fluid pressures of up to 90 – 457 PSI.

Product Overview

Brand

Aro

Piston Pump Type

4 ball

Product Type

Pump

Pump Type

Piston

Range

AF0603

Part Number

47083365

Pump Code

AF0603M11KS48

Resources

Technical Specifications

Material

300 Series Stainless Steel

Porting

NPT

Power

Air Operated

Size

1 1/2"

Ratio

3:1

Motor Diameter

Fluid Inlet

1 1/2" NPT(F)

Air Exhaust

1 1/4" NPT(F)

Fluid Outlet

1" NPT(F)

Stroke

Flow Rate

110.8 LPM

Air Inlet Pressure Range

30-150 PSIG

Air Inlet

1/2" NPT(F)

Displacement Per Cycle

1847 cc

Cycles Per Gallon

2.05

Flow 60 Cycles Per Min

29.3 GPM

Noise Level

84.7 dba

Fluid Pressure Range

90 - 457 PSI

Air Pressure Range

30 - 150 PSI

Upper Packings

Glass Filled PTFE

Lower Packings

Virgin PTFE

Spring Type

Multiple Wave Spring

Plunger Type

Hardened Stainless Steel w/ Ceramic Coating

Lower Pump End

67201-74B
