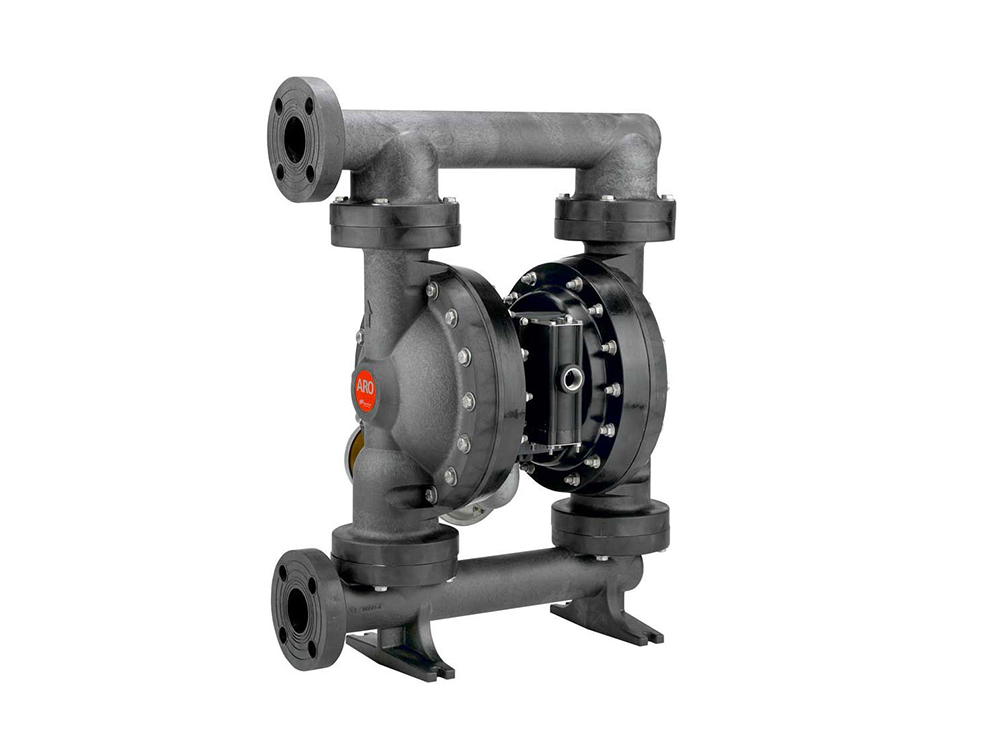

Aro¨ PD20E-FNS-KVV-A Expert 2" Diaphragm Pump With Conductive Polypropylene Centre Section and Conductive Polyvinylidene Fluoride (PVDF) Body (PVDF Seats

Aro PD20E-FNS-KAA-A With Polypropylene wetted body and Santoprene diaphragms (2″ – Flange)

£17,173.20 Inc VAT

Excluding VAT: £14,311.00

Free UK Shipping

Aro Expert Series pumps are available with Electronic Interface capability, solenoid actuation for accurate cycle rate control, and long-life PTFE diaphragms, providing a 2-time increase in service life over standard PTFE*.

Product Details

  • Brand: Aro
  • Part Number: PD20E-FNS-KAA-A
  • Family: Expert
  • Range: Expert
  • Power Source: Air Operated
  • Max Flow Rate: 184 GPM (696 LPM)
  • Seats/Balls/Diaphragms: PVDF/Santoprene/Santoprene
  • Body Material: Conductive Polyvinylidene Fluoride (PVDF)
  • Centre Section: Conductive Polypropylene
  • Fluid Inlet: 2"
  • Fluid Outlet: 2"
  • Porting: 2" ANSI / DIN Flange
  • Air Inlet: 3/4"
  • Max Solids: 3.2mm
  • Material: Conductive PVDF
Atex Rated

Resources

Datasheet
