Home Aro Diaphragm Pumps Expert Aro Expert PD20E-FNS-KTT-A Diaphragm Pump 2 Inch Flange PVDF / PTFE ATEX

Sale

Aro Expert PD20E-FNS-KAA-A Diaphragm Pump 2 Inch Flange PVDF / SP ATEX

Aro Expert PD20E-FNS-KTT-A Diaphragm Pump 2 Inch Flange PVDF / PTFE ATEX

Name: Aro Expert PD20E-FNS-KTT-A Diaphragm Pump 2 Inch Flange PVDF / PTFE ATEX
SKU: PD20E-FNS-KTT-A
Availability: InStock

Original price was: £13,063.00.Current price is: £11,757.00.

£11,757.00 Ex VAT

Free UK Shipping

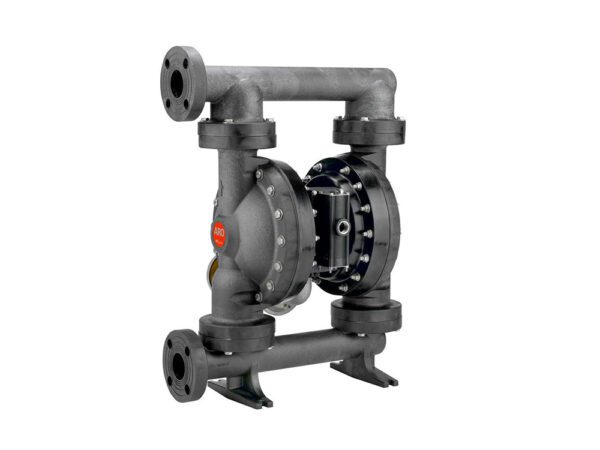

This Aro Expert 2″ Air Operated Diaphragm Pump can reach flow rates of up to 696 LPM. Featuring Stainless Steel hardware PTFE balls, PTFE & Santoprene diaphragms and PVDF seats. Atex Rated. Part Number: PD20E-FNS-KTT-A

Description

Description

Product images are for illustrative purposes only and may not represent the exact final ARO pump.

Product Overview

Brand

Aro

Family

Expert

Product Type

Pump

Pump Type

Diaphragm

Part Number

PD20E-FNS-KTT-A

Pump Code

PD20E-FNS-KTT-A

Resources

Technical Specifications

Balls

PTFE

Body Material

Conductive PVDF

Centre Section

Conductive Polypropylene

Diaphragms

PTFE & Santoprene

Porting

ANSI / DIN Flange

Power

Air Operated

Seats

PVDF

Size

Fluid Inlet

Air Exhaust

1 1/2"

Fluid Section

Conductive PVDF

Fluid Outlet

Flow Rate

696 LPM

Air Inlet

3/4"

Max Pressure

120 PSI

Max Temperature

107 Degrees Celsius

Noise Level

85 dBa

Fluid Pressure Range

10 - 120 PSI

Air Pressure Range

Max: 120 PSI

Max Solids

6.4 mm

ATEX Rated

Yes
