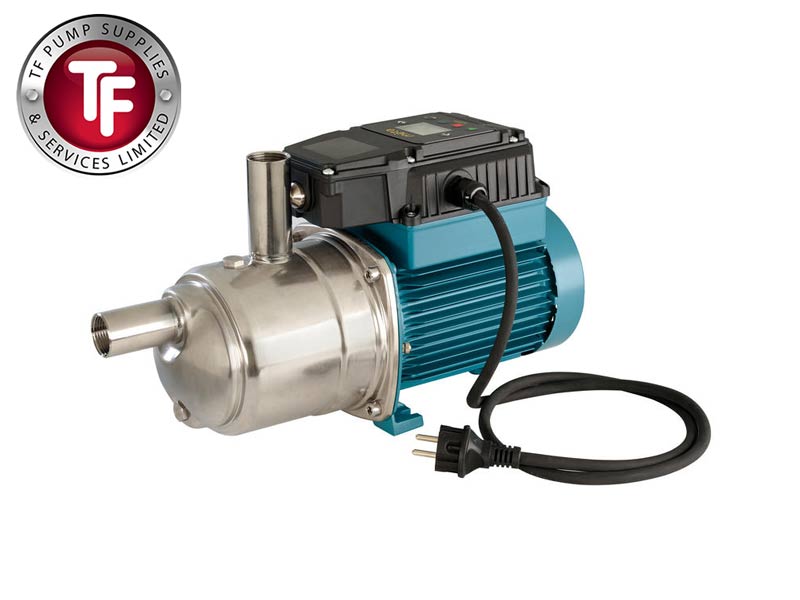

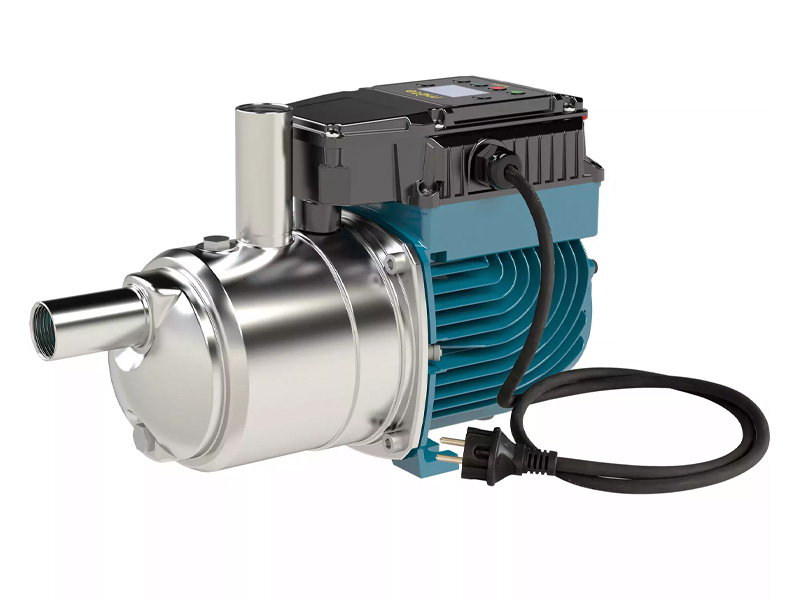

Calpeda Meta - A self priming booster set with variable speed drive

Call For Price

The Calpeda Meta is a self priming booster set that features a built in variable speed drive, a plug and play solution and equipped with an integral pressure transducer, integrated check valve and a built-in pressure vessel.

Product Details

  • Brand: Calpeda
  • Part Number: META
  • Pump Code: T663A10210S3
  • Family: Meta
  • Range: Meta
  • Power Source: Electric
  • Fluid Inlet: 1"
  • Fluid Outlet: 1"
  • Porting: BSP
  • Material: Stainlesss Steel
  • Motor Details: 230/1/50
  • Pump Orientation: Horizontal
  • Mechanical Seal: Carbon - Ceramic - NBR

Features

  • integrated frequency converter
  • built-in pressure vessel
  • high efficiency asynchronous single-phase motor
  • motor power control
  • programmable re-start pressure
  • no hydraulic losses due to the measuring devices
  • voltage and current control
  • monitoring of maximum starting current
