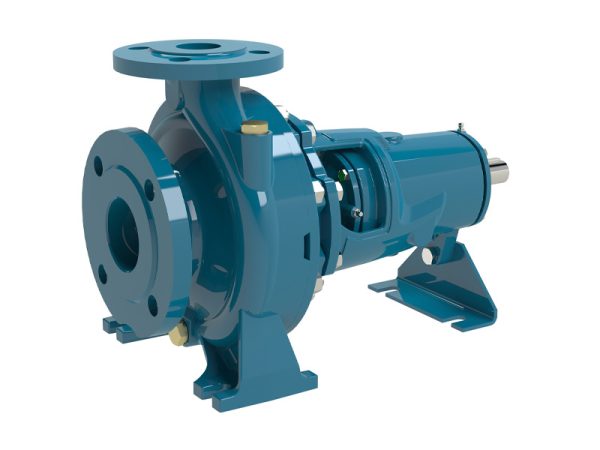

Calpeda N 65-250C/A Bare Shaft End Suction Pump – 50001621000

The Calpeda N 65-250C/A is a bare shaft end-suction centrifugal pump with bearing bracket (EN 733). It has a cast iron pump casing and cast iron impeller. Supplied as a bare shaft pump for coupling to a separate motor, it is matched in the catalogue to a 22 kW 2-pole motor. Maximum head is 61 m and maximum flow 2200 LPM, with DN 80 suction and DN 65 delivery connections. Suitable for clean liquids without abrasives (solids up to 0.2%) in water supply, heating, air-conditioning, cooling and circulation plants, civil, industrial and agricultural applications, fire fighting and irrigation. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 16 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
