Calpeda NM 1/AE Close Coupled Centrifugal Pump 230v / 400v 0.37 kW – 60010010000

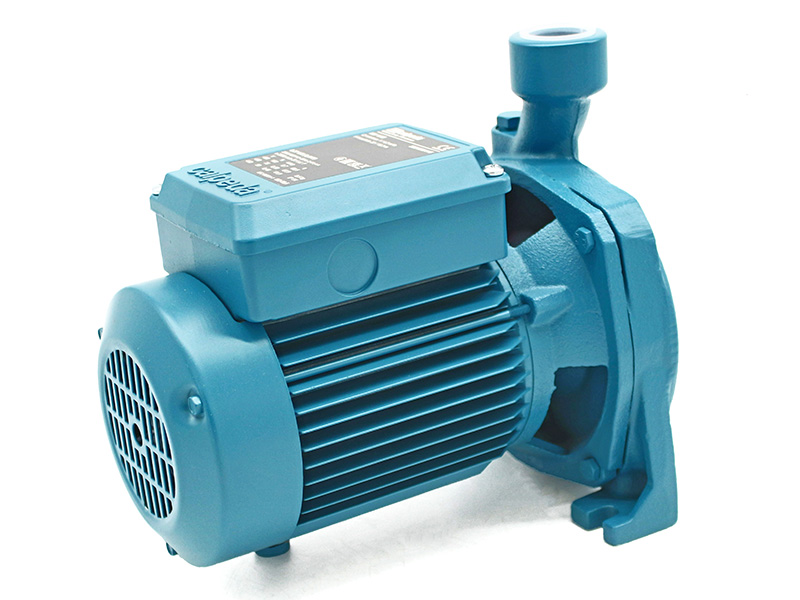

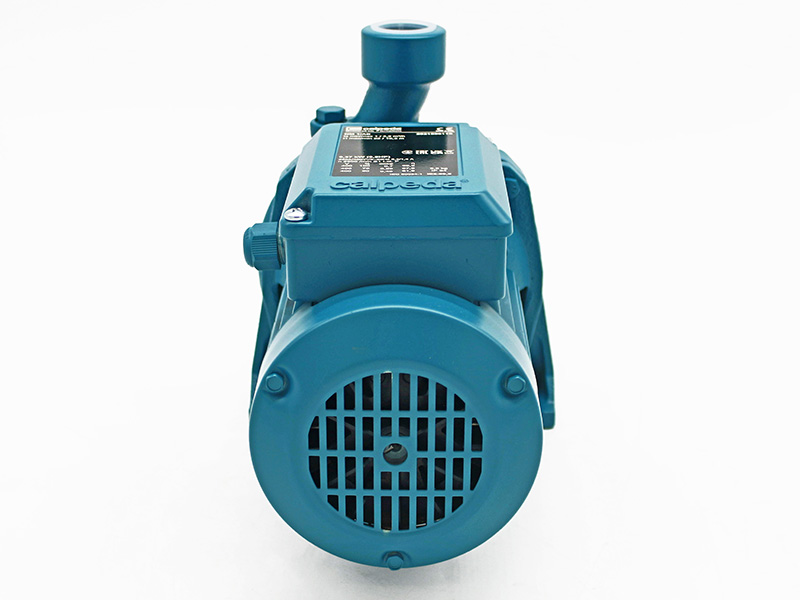

The Calpeda NM 1/AE is a close-coupled centrifugal pump with threaded connections. It has a cast iron pump casing and brass impeller, a 0.37 kW (0.5 HP) 2-pole three-phase motor for a 230 V / 400 V supply. Maximum head is 22.7 m and maximum flow 70 LPM, with 1″ suction and 1″ delivery connections. Suitable for clean liquids without abrasives (solids up to 0.2%) in water supply, heating, air-conditioning, cooling and circulation plants, civil and industrial applications and irrigation. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 10 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
