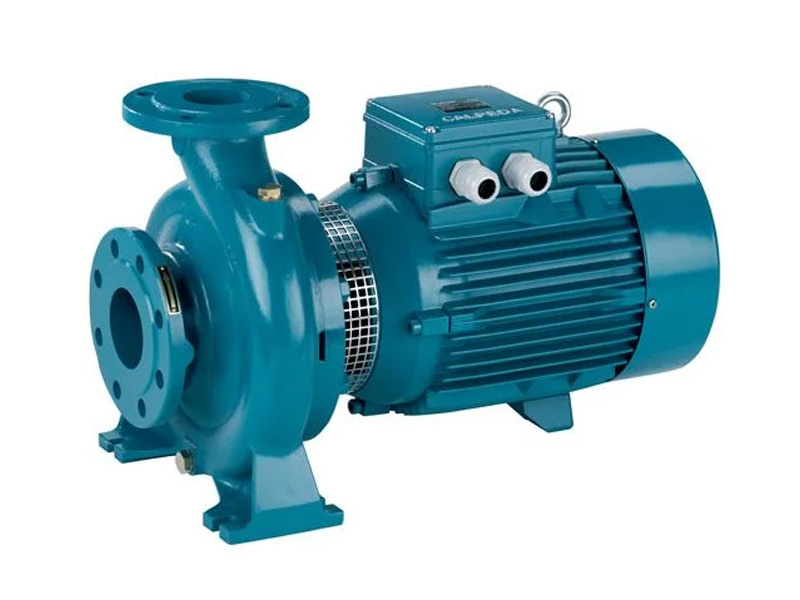

Calpeda NM4 80/20C/A 4 Pole Centrifugal Pump 230v / 400v 2.2 kW – 60901043000

The Calpeda NM4 80/20C/A is a 4-pole close-coupled centrifugal pump with flanged connections (EN 733 dimensions). It has a cast iron pump casing and cast iron impeller, a 2.2 kW (3 HP) 4-pole three-phase motor for a 230 V / 400 V supply. Maximum head is 9 m and maximum flow 2000 LPM, with DN 100 suction and DN 80 delivery connections. Suitable for clean liquids without abrasives (solids up to 0.2%) in water supply, heating, air-conditioning, cooling and circulation plants, civil and industrial applications and irrigation. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 16 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
