Calpeda NMS 100/200A/A Stub Shaft Centrifugal Pump 400v / 690v 45 kW – 60T02261000

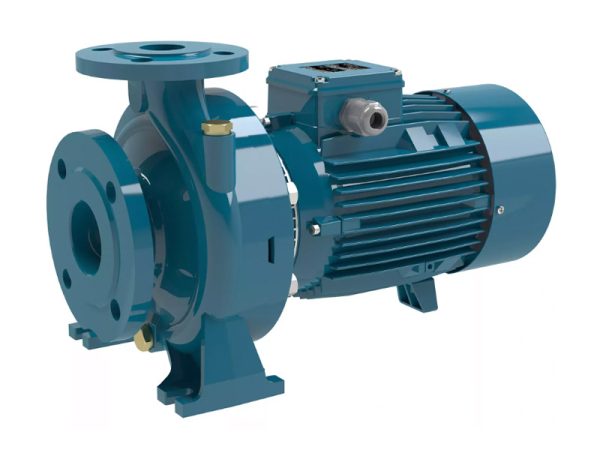

The Calpeda NMS 100/200A/A is a close-coupled centrifugal pump with stub shaft construction for standard motors and flanged connections (EN 733 dimensions). It has a cast iron pump casing and cast iron impeller, a 45 kW (60 HP) 2-pole three-phase motor for a 400 V / 690 V supply. Maximum head is 62 m and maximum flow 5000 LPM, with DN 125 suction and DN 100 delivery connections. Suitable for clean liquids without abrasives (solids up to 0.2%) in water supply, heating, air-conditioning, cooling and circulation plants, civil and industrial applications and irrigation. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 16 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
