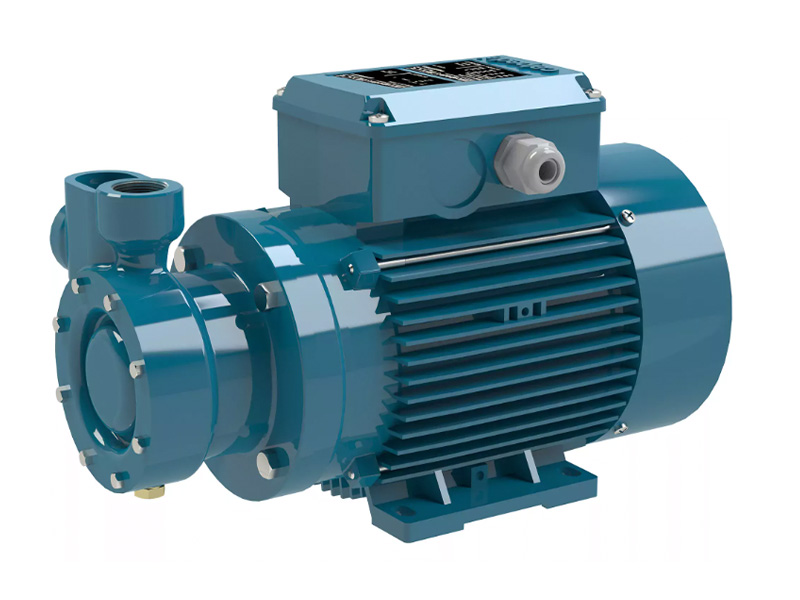

Calpeda TP 100/B Peripheral Pump 230v / 400v 2.2 kW – 70000083000

The Calpeda TP 100/B is a close-coupled peripheral pump. It has a cast iron pump casing and brass impeller, a 2.2 kW (3 HP) 2-pole three-phase motor for a 230 V / 400 V supply. Maximum head is 184 m and maximum flow 40 LPM, with 3/4″ suction and 3/4″ delivery connections. Suitable for clean liquids without abrasives or suspended solids, boosting network pressure, cooling and air-conditioning equipment and circulation duties. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 16 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
