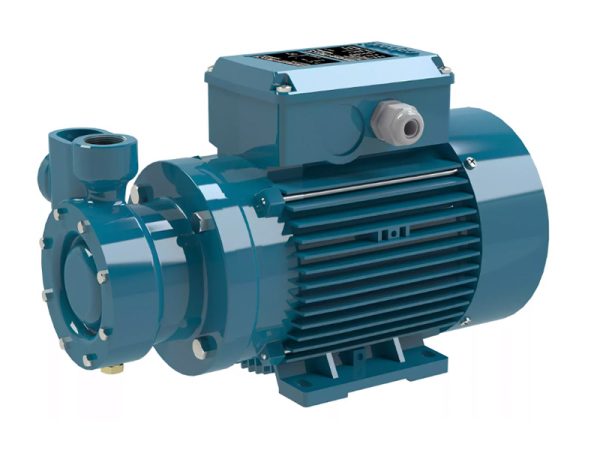

Calpeda TPM 78/A Peripheral Pump 230v 0.37 kW – 70120060000

The Calpeda TPM 78/A is a close-coupled peripheral pump. It has a cast iron pump casing and brass impeller, a 0.37 kW (0.5 HP) 2-pole single-phase motor for a 230 V supply. Maximum head is 82 m and maximum flow 16.6 LPM, with 1/2″ suction and 1/2″ delivery connections. Suitable for clean liquids without abrasives or suspended solids, boosting network pressure, cooling and air-conditioning equipment and circulation duties. Liquid temperature -10 to +90 degrees Celsius, maximum working pressure 16 bar, Carbon / Ceramic / NBR mechanical seal. Total suction lift up to 7 m.
