Sale!
Graco¨ 24B832 Huskyª 1 1/2" Diaphragm Pump With Aluminium Centre Section and Polypropylene Body (PVDF Seats

Graco DB2377 With Polypropylene wetted body and Buna diaphragms (1 1/2″ – Flange)

Original price was: £3,543.60.Current price is: £2,481.60. Inc VAT

Excluding VAT: £2,068.00

Free UK Shipping

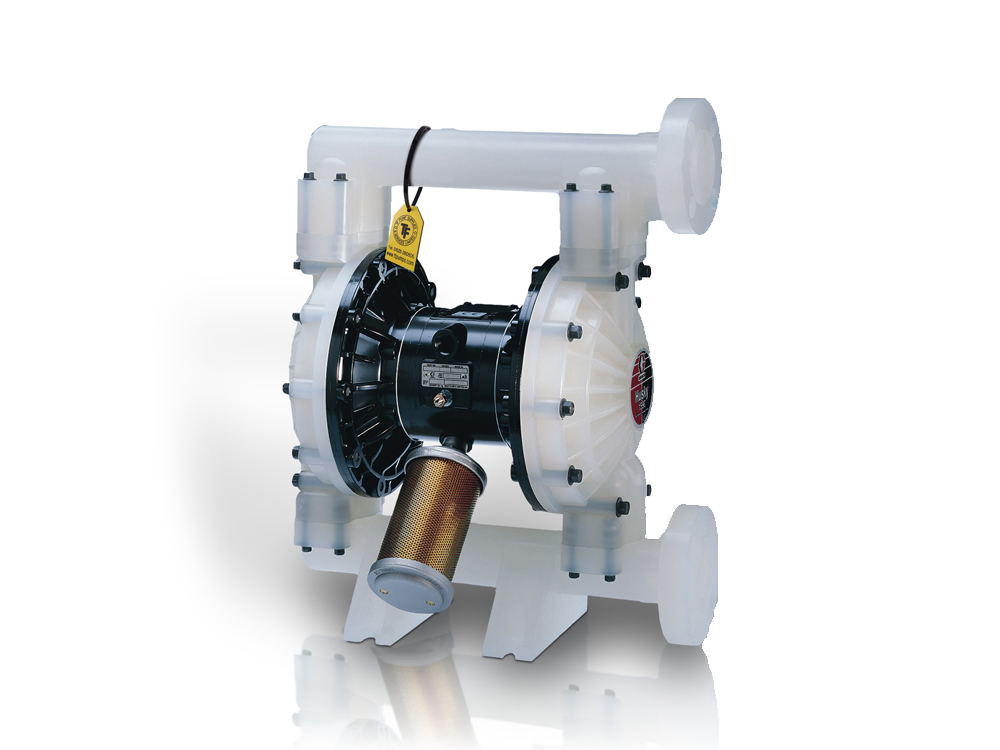

The Husky 1590 air-operated diaphragm pump features a patented, high-reliability closed centre air valve that is online serviceable and an epoxy-coated air section for tough environmental conditions.

Product Details

  • Brand: Graco
  • Part Number: 77
  • Pump Code: DB2377
  • Family: Husky
  • Power Source: Air Operated
  • Max Flow Rate: 341 LPM
  • Seats/Balls/Diaphragms: 316 Stainless Steel/Buna/Buna
  • Body Material: Polypropylene
  • Centre Section: Aluminium
  • Fluid Outlet: 1 1/2""
  • Porting: End Flange ANSI/DIN
  • Air Inlet: 1/2"
  • Max Solids: 4.8mm
  • Material: Polypropylene

Resources

Datasheet
Chemical Guide

Parts / Repair Kits

Valve Seat Kit: D0B300
Valve Ball Kit: D0C070
Diaphragms Kit: D0C007

Fluid Section Repair Kit: D0C377
Air Section Repair Kit: 236273
Filter Reguator: P393D4-604
