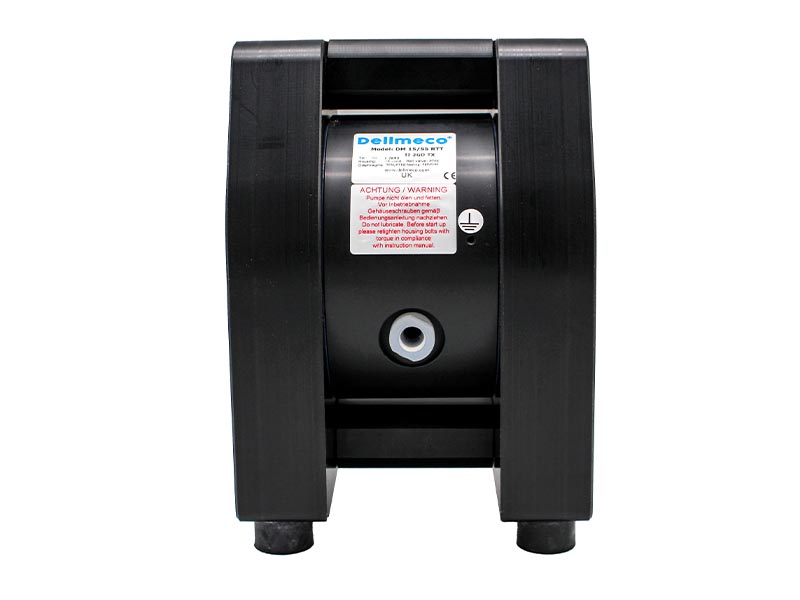

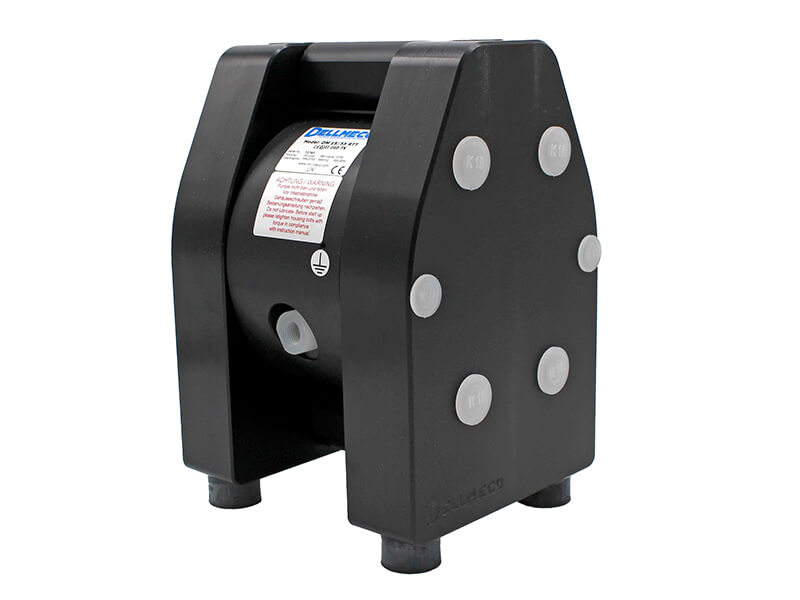

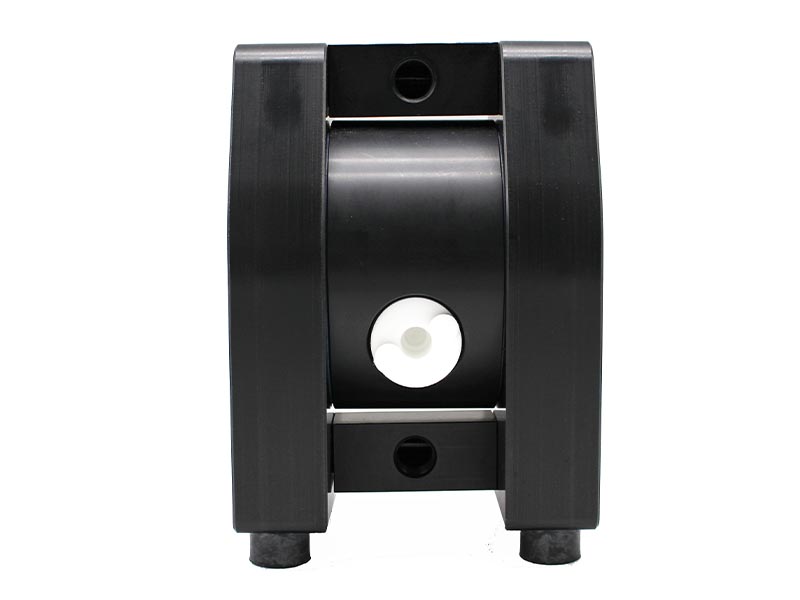

Dellmeco DM15/55-RTT With Polyethylene wetted body and PTFE diaphragms (1/2″ – BSP)

£1,153.20 Inc VAT

Excluding VAT: £961.00

Free UK Shipping

Dellmeco DM series is a range of unique, compact and versatile pumps combining high-spech with proven reliability and quality. They are positive displacement, low shear, gentle handling pumps that are suitable for a wide range of applications, with long-life diaphragms with no metal parts in contact with the media.

Product Details

  • Brand: Dellmeco
  • Part Number: /55-RTT
  • Family: Conductive Polyethylene
  • Power Source: Air Operated
  • Max Flow Rate: 55 LPM
  • Balls/Diaphragms: PTFE/TFM/PTFE
  • Body Material: Black Conductive/ATEX Polyethylene
  • Centre Section: Conductive Polyethylene
  • Fluid Outlet: 1/2"
  • Porting: BSP
  • Air Inlet: 1/4"
  • Max Solids: 3.1mm
  • Material: Polyethylene
Atex Rated

Resources

Datasheet

Parts / Repair Kits

Valve Ball : 1-40-60-23
Diaphragms : 1-40-50-05

Fluid Section Repair Kit: SET1-DM15-RTT
Air Section Repair Kit: SET2-DM15-RTT
Filter Reguator: P391B4-604
