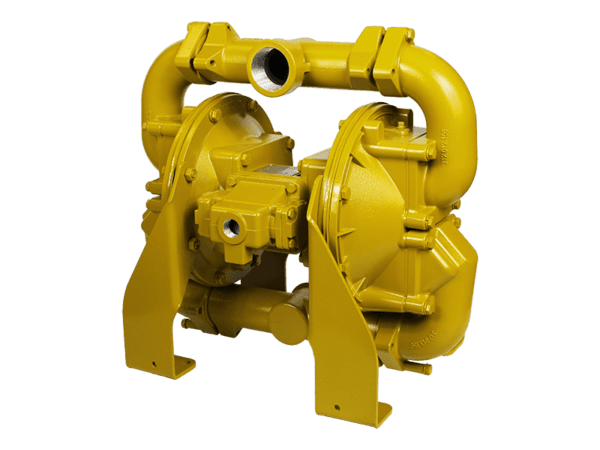

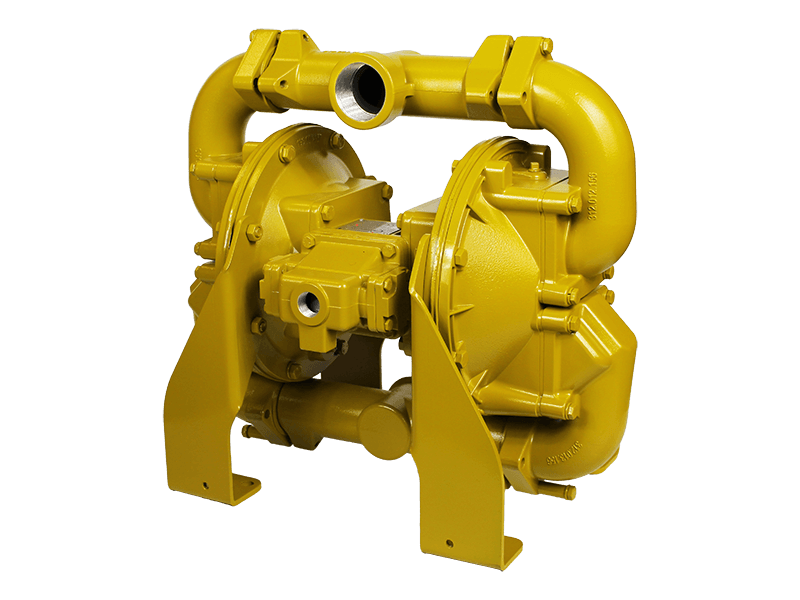

Enviroflex EFHDF2-DB6A Flap Valve Diaphragm Pump With Aluminium Wetted Body And Buna Diaphragms (2″ – BSP)

£3,180.00 Inc VAT

Excluding VAT: £2,650.00

Free UK Shipping

Capable of taking solids upto 45mm in size!

Product Details

  • Brand: Enviroflex
  • Part Number: F2-DB6A
  • Pump Code: EFHDF2-DB6A
  • Power Source: Air Operated
  • Max Pressure: 125 psi (8.6 bar)
  • Max Flow Rate: 567 LPM
  • Seats/Balls/Diaphragms: Buna/Buna/Buna
  • Body Material: Aluminium
  • Centre Section: Aluminium
  • Porting: BSP
  • Air Inlet: 3/4"
  • Max Solids: 45mm
  • Material: Aluminium
Atex Rated

Resources

Manual
