Product Details

• Brand: Graco
• Part Number: 63
• Family: Glutton
• Material: Carbon Steel

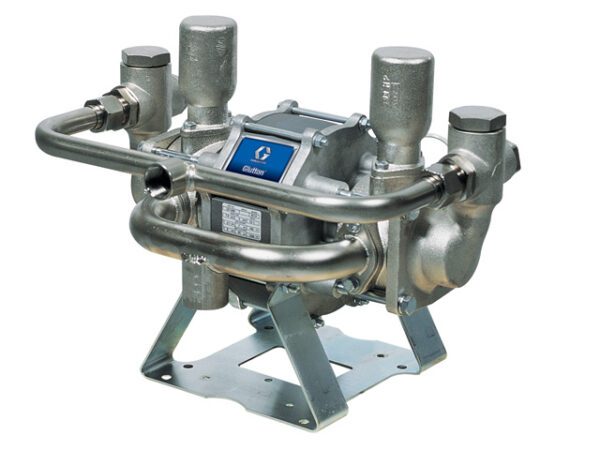

The Glutton’s bellows seal design pump is ideal for air assisted and airless spray applications. The unique divorced duplex plunger style pumps are designed to handle more shear and heat sensitive materials.

Technical Specifications

400 psi (2.8 MPa, 28 bar) Maximum Fluid Working Pressure
Maximum working pressure: 400 psi (2.8 MPa, 28 bar)
Maximum air input pressure: 100 psi (0.7 MPa, 7 bar)
Air operating range: 25 to 100 psi (0.07 to 0.7 MPa, 1.73 to 7 bar)
Maximum continuous pump speed: 60 cpm
Fluid flow at 60 cpm: 5.6 gpm (21.2 lpm)
Fluid volume per cycle: 0.096 gal (0.366 liter)
Maximum suction lift (water): 15 ft (4.57 m)
Maximum operating temperature: 150F (65 C)
Air inlet: 1/2″ npt(f)
Fluid inlet: 1.25″ npt(f)
Fluid outlet: 1″ npt(f)
Weight: 80.5 lb (36.2 kg)
