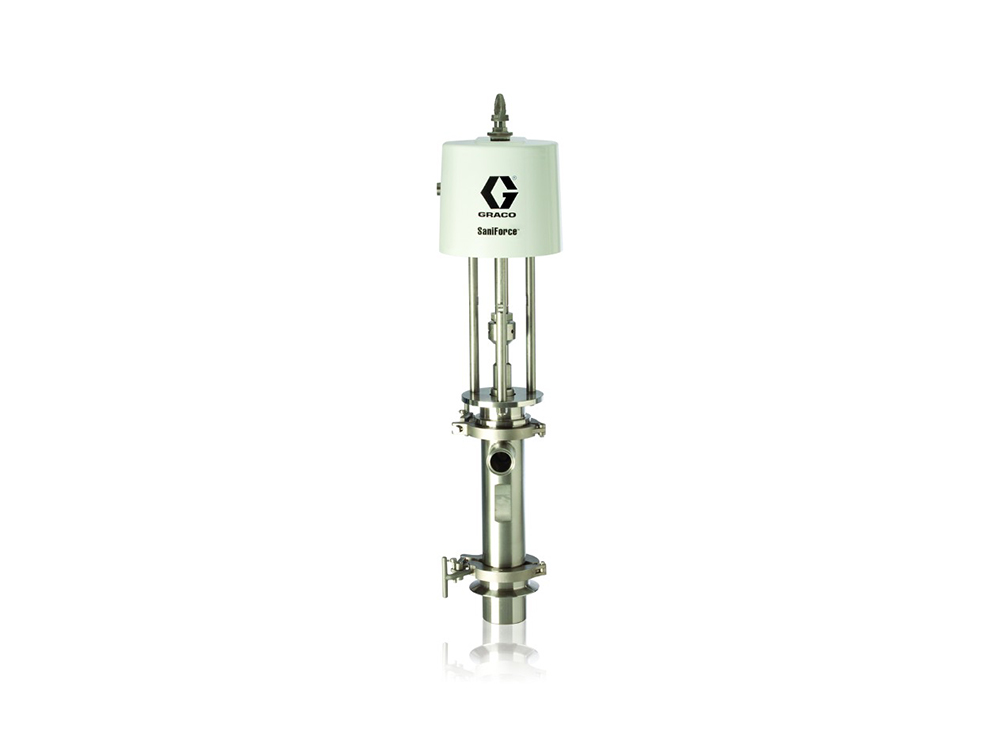

Graco Saniforce Piston Pump 12:1 Priming Piston / Stubby – 24F625

Name: Graco Saniforce Piston Pump 12:1 Priming Piston / Stubby - 24F625
SKU: 24F625
Availability: InStock

Original price was: £13,162.00.Current price is: £11,846.00.

£11,846.00 Ex VAT

Free UK Shipping

The Graco Saniforce 24F625 piston pump is a 12:1 ratio, priming piston, stubby set-up. For use in sanitary applications to transfer medium to high viscosity fluids.

Wetted Parts:
Stainless steel (300 series or other corrosion-resistant grades), Acetal, Buna-N, PTFE and UHMWPE

Packing:
Acetal, PTFE, Nitrile and UHMWPE

Product Overview

Brand

Graco

Family

Saniforce

Product Type

Pump

Range

Saniforce

Part Number

24F625

Resources

Technical Specifications

Size

10.4 cm

Ratio

12:1

Fluid Inlet

4.1" (10.4 cm) tube with flange for 6" (15.2 cm) Tri-Clamp

Air Exhaust

3/4 NPT (m)

Fluid Outlet

2" Tri Clamp

Air Inlet

1/2 NPT (f)

Max Pressure

1450 psi (100.4 bar)

Max Temperature

71 degrees Celsius

Cycles Per Gallon

7.1

Flow 60 Cycles Per Min

32 LPM Max

Noise Level

77.2 dBA

Fluid Pressure Range

1450 psi (100.4 bar) Max

Air Pressure Range

100 psi (6.9 bar) Max

Max Solids

6.4mm

Food Grade

Yes
