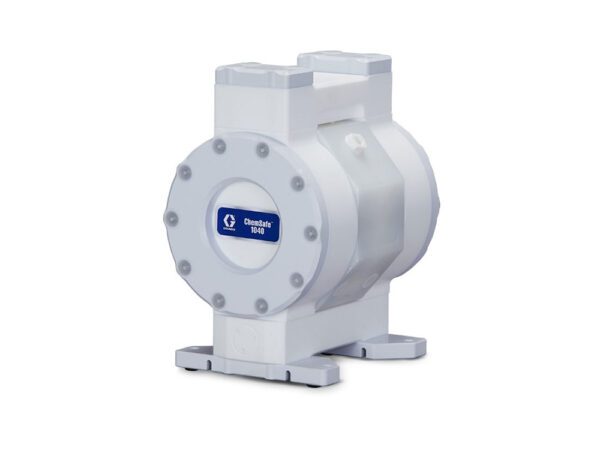

Graco Chemsafe 1040 1″ Overmolded PTFE/PTFE/EPDM Air Diaphragm Pump – 24X423 – NPT Thread
£8,926.80 Inc VAT
Excluding VAT: £7,439.00
Free UK Shipping
Graco’s ChemSafe pumps feature PTFE or UHMWPE (ultra high molecular weight polyethylene) corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There’s no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements. Plus they’re dead-head capable and achieve high flow rates while minimising air consumption and operational noise.
Product Details
- Brand: Graco
- Part Number: 23
- Pump Code: 1040PT-P01APT3PTPTPOPT
- Family: Chemsafe™
- Power Source: Air Operated
- Seats/Balls/Diaphragms: PTFE/PTFE/PTFE Overmoulded
- Body Material: PTFE
- Centre Section: Polypropylene
- Porting: NPT
- Material: PTFE
Chemsafe™ 1040 24X423 Technical Specifications
Max Flow Rate: 146 lpm (38.8 gpm)
Displacement Per Cycle: 0.56 l (0.148 gal)
Connection Sizes / Types: 1″
Max. Pumpable Solids: 6.1mm (0.24 in)
Suction Lift Dry: 4.0m (13 ft)
Suction Lift Wet: 9.5m (31 ft)
Weight: 18KG
Max Air / Fluid Temperature: 100 °C ( 212°F )
Min/Max Air Pressure: 2 bar (30 psi) minimum start-up air pressure / 7 bar (100 psi) maximum supply air pressure
Max. Sound Pressure: 83.3 dB(a)
Max. Sound Power: 78.3 dB(a)
