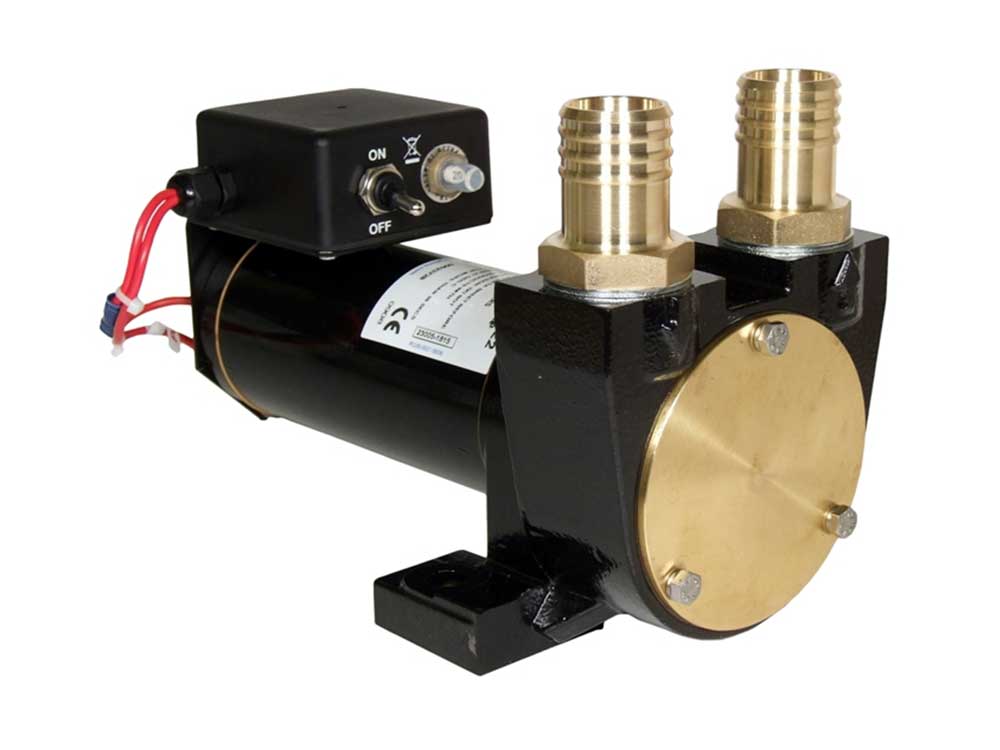

Product Details

• Brand: Jabsco
• Part Number: 0-1122

Up to 100 litres/minute

With switch/fuseholder & 1 1/4” hose adapters

• Connections: – 1” BSP (parallel) threaded ports.
• Dimensions: – 264 mm long, 145mm wide, 182mm high
• Output: – 105 litres/minute. Maximum recommended total head 15m (6m for continuous duty)
• Maximum Current: 24(amps)
• Heavy duty, continuously rated diesel fuel transfer pump
• Robust cast iron body, bronze sliding vanes
• Unaffected by temperature extremes: suitable for use from –30°C° to +50°C
• Self-priming from dry up to 5m vertical lift
• Use minimum 32mm (1¼”) bore hose
• IP55 motor enclosure
