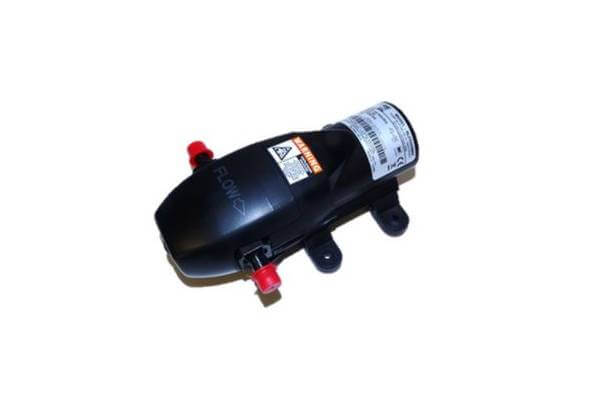

Product Details

• Brand: Flojet
• Part Number: 222702V

Drive : electric motor
Supply voltage: 24 volts DC
Pump pressure: maximum 2.4bar
Delivery rate: up to 3.8 liters / minute (with free discharge)
Head: maximum 25m
Self-priming : Yes up to 0.7m suction height
Connections: 9.5mm (3/8 “) connector for hose
Dimensions: 162mm long, 100mm wide, 61mm high
Required fuse: 5 amps
Power consumption: 30 W
Duration of use: interval
Overload protection : Yes thermal overload protection
Design: double diaphragm pump
Material : Santoprene membrane, EPDM valves
Pressure switch : Yes (pump switches off when the maximum pressure is reached)
Cut-out pressure: 2.4 bar
Cut-in pressure : 1.7bar
Maximum liquid temperature : 43 ° C
Weight 0.71 kg
