Home Aro Diaphragm Pumps Expert Aro Expert PD10A-BSS-SST Diaphragm Pump 1 Inch BSP SS / PTFE ATEX – 15209745

Sale

Aro Expert PD10A-AAP-AAA Diaphragm Pump 1 Inch NPT ALI / SP ATEX - 20092359

Aro Expert PD10A-BSS-SST Diaphragm Pump 1 Inch BSP SS / PTFE ATEX – 15209745

Name: Aro Expert PD10A-BSS-SST Diaphragm Pump 1 Inch BSP SS / PTFE ATEX - 15209745
SKU: 15209745
Availability: InStock

Original price was: £4,450.00.Current price is: £4,005.00.

£4,005.00 Ex VAT

Free UK Shipping

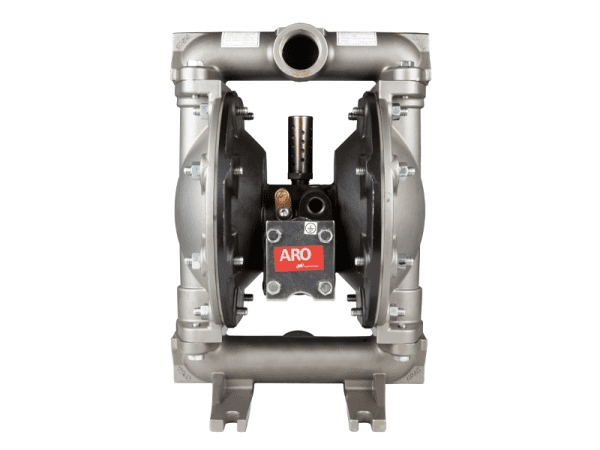

This Aro Expert 1″ Air Operated Diaphragm Pump can reach flow rates of up to 197.6 LPM. Featuring Stainless Steel hardware Stainless Steel balls, PTFE diaphragms and 316 Stainless Steel seats. Atex Rated. Part Number: PD10A-BSS-SST

Product Overview

Brand

Aro

Family

Expert

Product Type

Pump

Pump Type

Diaphragm

Part Number

15209745

Pump Code

PD10A-BSS-SST

Resources

Technical Specifications

Balls

Stainless Steel

Body Material

Stainless Steel

Centre Section

Aluminium

Diaphragms

PTFE

Porting

BSP

Power

Air Operated

Seats

316 Stainless Steel

Size

Fluid Inlet

Air Exhaust

3/4"

Fluid Section

Stainless Steel

Fluid Outlet

Flow Rate

197.6 LPM

Air Inlet

1/4"

Max Pressure

120 PSI

Max Temperature

107 Degrees Celsius

Noise Level

80.6 dBa

Fluid Pressure Range

10 - 120 PSI

Air Pressure Range

Max: 120 PSI

Max Solids

3.3 mm

ATEX Rated

Yes
