Home Yamada Diaphragm Pumps NDP Yamada NDP Diaphragm Pump 1/2 Inch BSP SS / NEO Atex – NDP-15BSC

Sale

Yamada NDP Diaphragm Pump 1/2 Inch BSP SS / NEO Atex – NDP-15BSC

Name: Yamada NDP Diaphragm Pump 1/2 Inch BSP SS / NEO Atex - NDP-15BSC
SKU: NDP-15BSC
Availability: InStock

Original price was: £1,290.70.Current price is: £1,227.00.

£1,227.00 Ex VAT

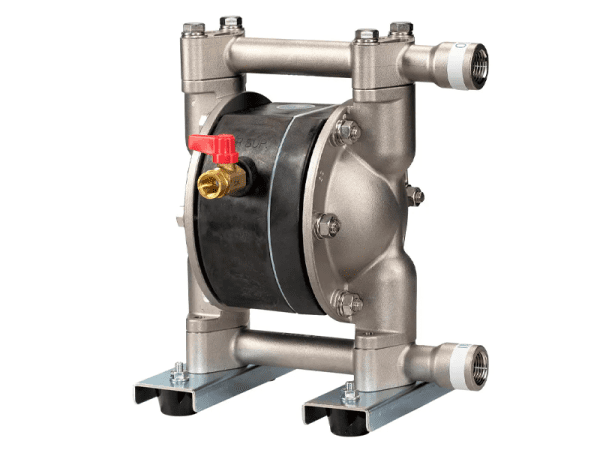

This Yamada NDP-15BSC 1/2″ Stainless Steel Air Operated Diaphragm Pump has 1/2″ BSP connections, Neoprene diaphragms, Neoprene balls and SUS seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-15

Part Number

NDP-15BSC

Pump Code

851958

Resources

Technical Specifications

Balls

Neoprene

Body Material

Stainless Steel 316

Centre Section

Ryton (PPS)

Diaphragms

Neoprene

Porting

BSP

Power

Air Operated

Seats

SUS

Size

1/2"

Fluid Inlet

1/2"

Air Exhaust

3/8" Female NPT

Fluid Section

Stainless Steel 316

Fluid Outlet

1/2"

Flow Rate

51 LPM

Max Temperature

82 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

1mm

ATEX Rated

Yes
