Yamada NDP Diaphragm Pump 1/2 Inch BSP PVDF / EPDM Atex - NDP-15FVE

Yamada NDP Diaphragm Pump 1/2 Inch BSP PVDF / SP Atex – NDP-15FVS

Name: Yamada NDP Diaphragm Pump 1/2 Inch BSP PVDF / SP Atex - NDP-15FVS
SKU: NDP-15FVS
Availability: InStock

Original price was: £972.20.Current price is: £924.00.

£924.00 Ex VAT

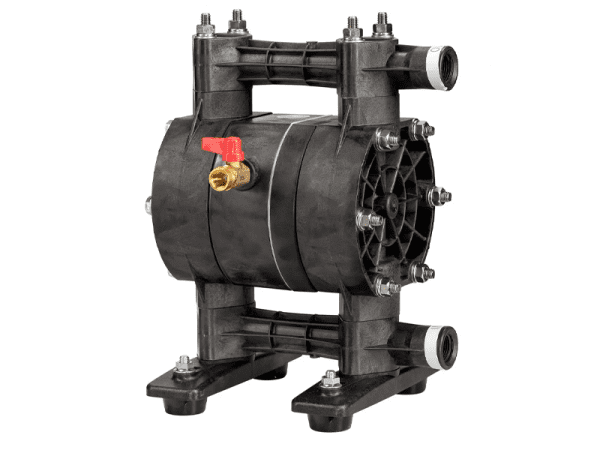

This Yamada NDP-15FVS 1/2″ Conductive PVDF Air Operated Diaphragm Pump has 1/2″ BSP connections, Santoprene diaphragms, PTFE Flat Valve and PVDF seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-15

Part Number

NDP-15FVS

Pump Code

854680

Resources

Technical Specifications

Balls

PTFE Flat Valve

Body Material

Conductive PVDF

Centre Section

Ryton (PPS)

Diaphragms

Santoprene

Porting

BSP

Power

Air Operated

Seats

PVDF

Size

1/2"

Fluid Inlet

1/2"

Air Exhaust

3/8" Female NPT

Fluid Section

Conductive PVDF

Fluid Outlet

1/2"

Flow Rate

51 LPM

Max Temperature

82 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

1mm

ATEX Rated

Yes
