Name: Yamada NDP Diaphragm Pump 1/2 Inch BSP PVDF / PTFE Atex - NDP-15FVTU
SKU: NDP-15FVTU
Availability: InStock

Original price was: £1,438.90.Current price is: £1,367.00.

£1,367.00 Ex VAT

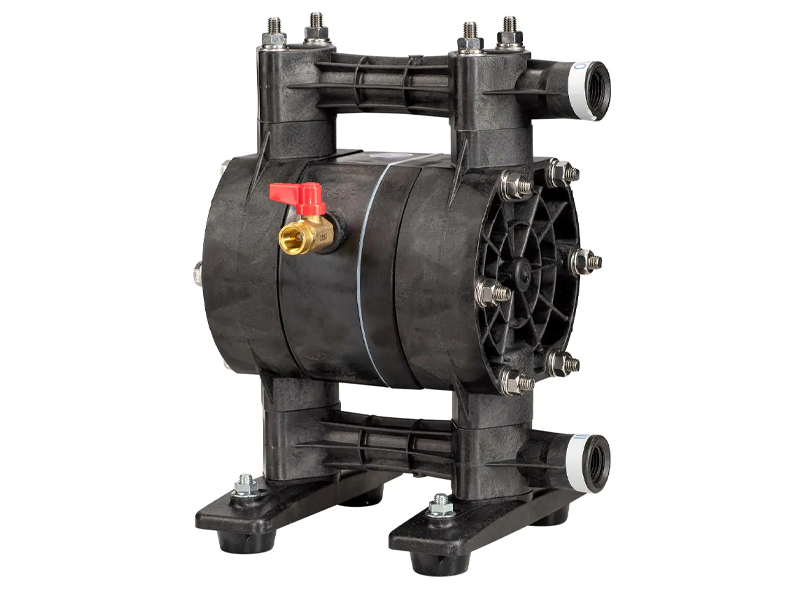

This Yamada NDP-15FVTU 1/2″ Conductive PVDF Air Operated Diaphragm Pump has 1/2″ BSP connections, PTFE & EPDM diaphragms, PTFE Flat Valve and PVDF seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-15

Part Number

NDP-15FVTU

Pump Code

YE Original

Resources

Technical Specifications

Balls

PTFE Flat Valve

Body Material

Conductive PVDF

Centre Section

Ryton (PPS)

Diaphragms

PTFE & EPDM

Porting

BSP

Power

Air Operated

Seats

PVDF

Size

1/2"

Fluid Inlet

1/2"

Air Exhaust

3/8" Female NPT

Fluid Section

Conductive PVDF

Fluid Outlet

1/2"

Flow Rate

45 LPM

Max Temperature

100 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

1mm

ATEX Rated

Yes
