Home Yamada Diaphragm Pumps NDP Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / NEO Atex – NDP-20BAC-BSP

Sale

Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / NEO Atex – NDP-20BAC-BSP

Name: Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / NEO Atex - NDP-20BAC-BSP
SKU: NDP-20BAC-BSP
Availability: InStock

Original price was: £754.70.Current price is: £717.00.

£717.00 Ex VAT

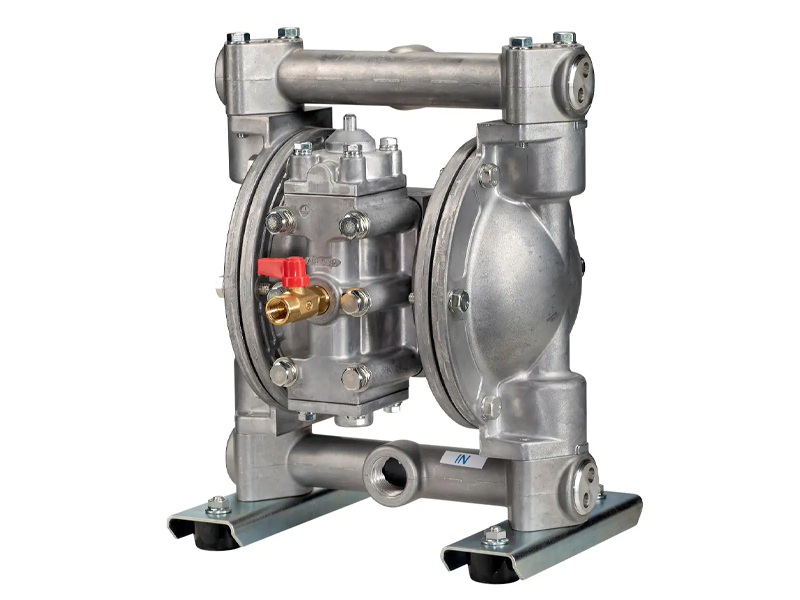

This Yamada NDP-20BAC-BSP 3/4″ Aluminium Air Operated Diaphragm Pump has 3/4″ BSP connections, Neoprene diaphragms, Neoprene balls and SUS Molded seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-20

Part Number

NDP-20BAC-BSP

Pump Code

855007

Resources

Technical Specifications

Balls

Neoprene

Body Material

Aluminium

Centre Section

Aluminium

Diaphragms

Neoprene

Porting

BSP

Power

Air Operated

Seats

SUS Molded

Size

3/4"

Fluid Inlet

3/4"

Air Exhaust

3/4" Female NPT

Fluid Section

Aluminium

Fluid Outlet

3/4"

Flow Rate

120 LPM

Max Temperature

82 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

2mm

ATEX Rated

Yes

Resources

FAQs

If your questions have not been answered here, get in touch with our team for more information.

Get In Touch

Our website does not display real-time stock levels. To inquire about availability, lead times, and delivery estimates, feel free to reach out to our helpful team. You can connect with us via live chat, call us at +44(0) 1332 913500, or email us at sales@tfpumps.com.

If your item remains unused and in its original packaging, you’re welcome to return it to our warehouse for a refund. Please ensure returns are initiated within 14 days of delivery. To start the return process, contact us via email at sales@tfpumps.com.

For your peace of mind, we recommend using an insured postal service for any returns to our warehouse.

Please note, a restocking fee will apply to all returned items. If you are unsure if an item is compatible with your application, please contact our team prior to ordering.

Absolutely! We understand that not all spare parts are listed on our website. Please don’t hesitate to contact us with your part numbers or a picture of your pump’s nameplate. Our friendly team will gladly provide advice on spare parts availability, prices, and delivery times.

Certainly! Our team of pump experts are on hand to help you find the perfect pump for your application. You have the option to use our Request a Quote form or reach out to us via telephone or email. When contacting us, please provide as much detail as possible about your application to ensure we can assist you effectively. We’re here to help!

You can contact our team either on our live chat feature, via telephone or email sales@tfpumps.com. Our working hours are 8:30 – 17:00 Monday through to Friday.
