Home Yamada Diaphragm Pumps NDP Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / PTFE Atex – NDP-20BATU

Sale

Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / NEO Atex - NDP-20BAC-BSP

Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / PTFE Atex – NDP-20BATU

Name: Yamada NDP Diaphragm Pump 3/4 Inch BSP ALI / PTFE Atex - NDP-20BATU
SKU: NDP-20BATU
Availability: InStock

Original price was: £1,213.90.Current price is: £1,154.00.

£1,154.00 Ex VAT

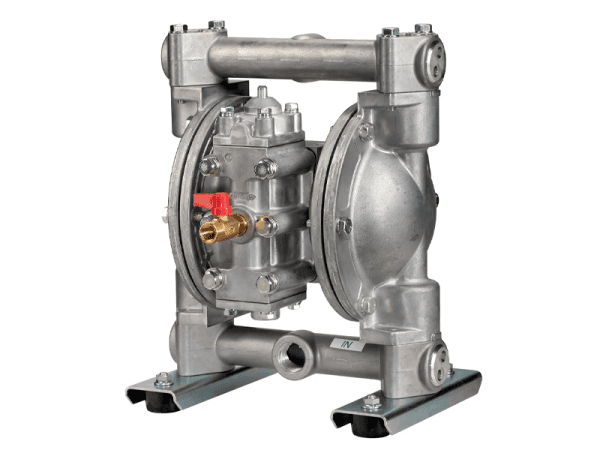

This Yamada NDP-20BATU 3/4″ Aluminium Air Operated Diaphragm Pump has 3/4″ BSP connections, PTFE & EPDM diaphragms, PTFE balls and SUS Molded seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-20

Part Number

NDP-20BATU

Pump Code

YE Original

Resources

Technical Specifications

Balls

PTFE

Body Material

Aluminium

Centre Section

Aluminium

Diaphragms

PTFE & EPDM

Porting

BSP

Power

Air Operated

Seats

SUS Molded

Size

3/4"

Fluid Inlet

3/4"

Air Exhaust

3/4" Female NPT

Fluid Section

Aluminium

Fluid Outlet

3/4"

Flow Rate

100 LPM

Max Temperature

100 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

2mm

ATEX Rated

Yes
