Yamada NDP Diaphragm Pump 1 Inch BSP ALI / NEO Atex – NDP-25BAC-BSP

Name: Yamada NDP Diaphragm Pump 1 Inch BSP ALI / NEO Atex - NDP-25BAC-BSP
SKU: NDP-25BAC-BSP
Availability: InStock

Original price was: £940.60.Current price is: £894.00.

£894.00 Ex VAT

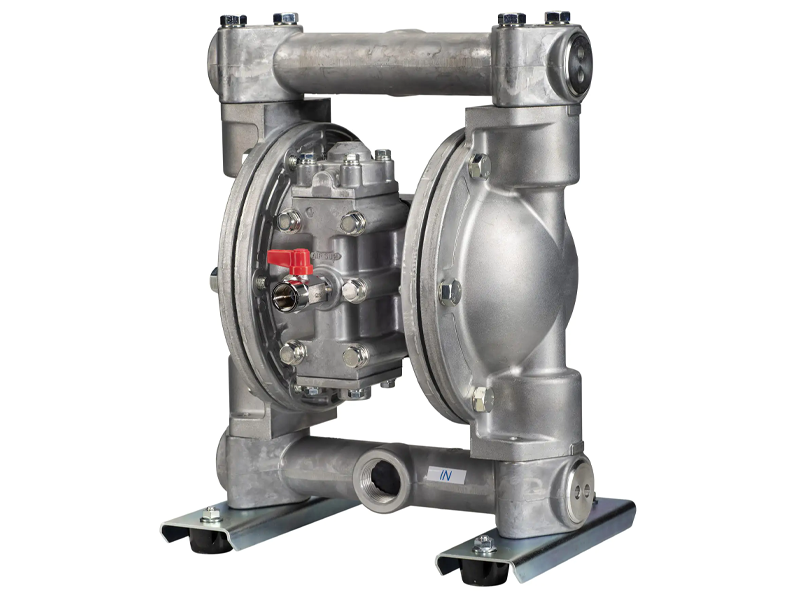

This Yamada NDP-25BAC-BSP 1″ Aluminium Air Operated Diaphragm Pump has 1″ BSP connections, Neoprene diaphragms, Neoprene balls and SUS Molded seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-25

Part Number

NDP-25BAC-BSP

Pump Code

855025

Resources

Technical Specifications

Balls

Neoprene

Body Material

Aluminium

Centre Section

Aluminium

Diaphragms

Neoprene

Porting

BSP

Power

Air Operated

Seats

SUS Molded

Size

Fluid Inlet

Air Exhaust

3/4" Female NPT

Fluid Section

Aluminium

Fluid Outlet

Flow Rate

170 LPM

Max Temperature

82 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

4.8mm

ATEX Rated

Yes
