Yamada NDP Diaphragm Pump 2 Inch Flanged / BSP ALI / NEO Atex - NDP-50BAC-RC

Yamada NDP Diaphragm Pump 2 Inch Flanged / BSP ALI / PTFE Atex – NDP-50BATU-RC

Name: Yamada NDP Diaphragm Pump 2 Inch Flanged / BSP ALI / PTFE Atex - NDP-50BATU-RC
SKU: NDP-50BATU-RC
Availability: InStock

Original price was: £3,921.50.Current price is: £3,726.00.

£3,726.00 Ex VAT

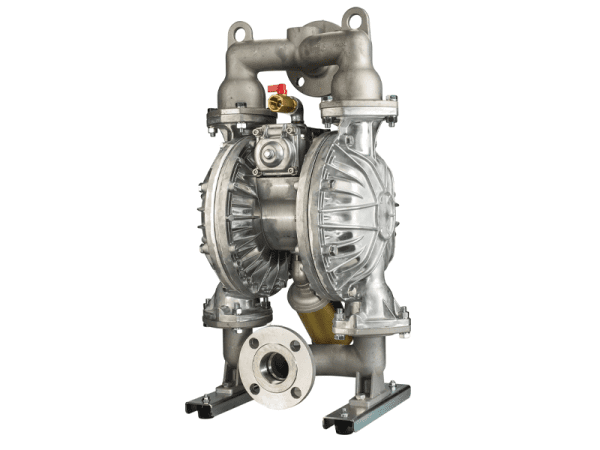

This Yamada NDP-50BATU-RC 2″ Aluminium Air Operated Diaphragm Pump has 2″ Flanged / BSP connections, PTFE & EPDM diaphragms, PTFE balls and Aluminium seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-50

Part Number

NDP-50BATU-RC

Pump Code

YE Original

Resources

Technical Specifications

Balls

PTFE

Body Material

Aluminium

Centre Section

Aluminium

Diaphragms

PTFE & EPDM

Porting

Flanged / BSP

Power

Air Operated

Seats

Aluminium

Size

Fluid Inlet

Air Exhaust

1" Female NPT

Fluid Section

Aluminium

Fluid Outlet

Flow Rate

620 LPM

Max Temperature

100 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

8mm

ATEX Rated

Yes
