Home Yamada Diaphragm Pumps NDP Yamada NDP Diaphragm Pump 1 Inch BSP PVDF / PTFE – NDP-P25BVTU

Sale

Yamada NDP Diaphragm Pump 1 Inch BSP PVDF / EPDM - NDP-P25BVE

Yamada NDP Diaphragm Pump 1 Inch BSP PVDF / PTFE – NDP-P25BVTU

Name: Yamada NDP Diaphragm Pump 1 Inch BSP PVDF / PTFE - NDP-P25BVTU
SKU: NDP-P25BVTU
Availability: InStock

Original price was: £3,022.20.Current price is: £2,872.00.

£2,872.00 Ex VAT

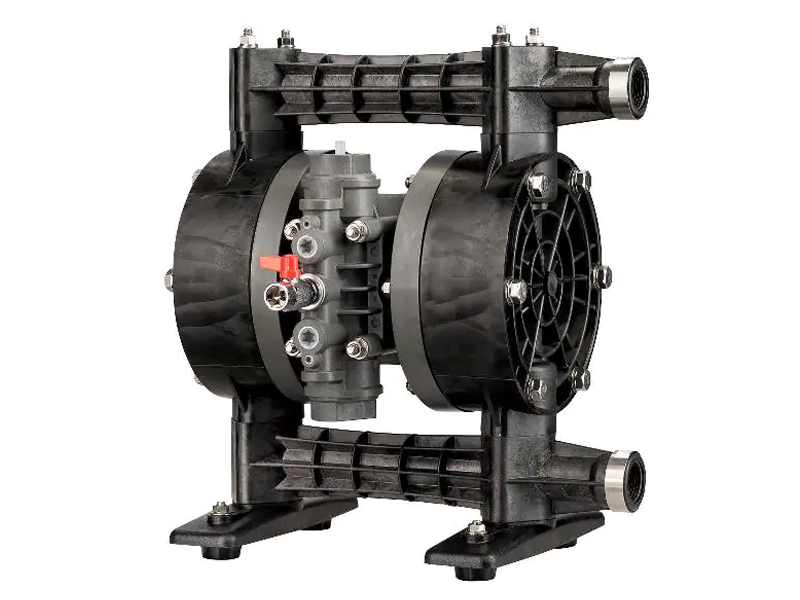

This Yamada NDP-P25BVTU 1″ Conductive PVDF Air Operated Diaphragm Pump has 1″ BSP connections, PTFE & EPDM diaphragms, PTFE balls and PVDF seats. All Yamada pumps feature bolted construction, which eliminates leaks and simplifies post-maintenance reassembly.

Product Overview

Brand

Yamada

Family

NDP

Product Type

Pump

Pump Type

Diaphragm

Range

NDP-P25

Part Number

NDP-P25BVTU

Pump Code

YE Original

Resources

Technical Specifications

Balls

PTFE

Body Material

Conductive PVDF

Centre Section

Glass Reinforced Polypropylene

Diaphragms

PTFE & EPDM

Porting

BSP

Power

Air Operated

Seats

PVDF

Size

Fluid Inlet

Air Exhaust

3/4" BSP

Fluid Section

Conductive PVDF

Fluid Outlet

Flow Rate

150 LPM

Max Temperature

60 Degrees Celsius

Air Pressure Range

20-100 PSI

Max Solids

3mm
