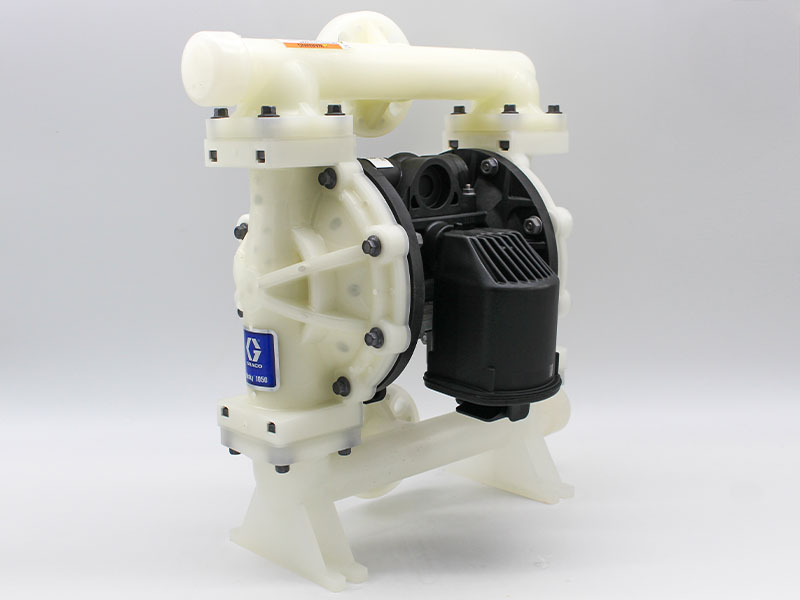

Graco Husky 1050 Diaphragm Pump 1 Inch Flange PP / PTFE – 649003

Name: Graco Husky 1050 Diaphragm Pump 1 Inch Flange PP / PTFE - 649003
SKU: 649003
Availability: InStock

£0.00

Unavailable Online: Enquire for Details

Free UK Shipping

Graco Husky 1050 1 inch polypropylene diaphragm pump with ANSI/DIN centre flanges, polypropylene seats, FKM balls and two-piece PTFE/EPDM diaphragms, PTFE o-rings, and a polypropylene centre section. Flow rates up to 189 LPM. Part Number: 649003
Please note this pump is obsolete, the closest replacement model is 649006. Please click here to view. Always check compatibility before purchasing.

Product Overview

Brand

Graco

Family

Husky

Product Type

Pump

Pump Type

Diaphragm

Range

Husky 1050

Part Number

649003

Pump Code

1050P-PP01AP1PPFKPTPT

Resources

Technical Specifications

Balls

FKM

Body Material

Polypropylene

Centre Section

Polypropylene

Diaphragms

PTFE / EPDM Two-Piece

Porting

Centre Flange ANSI / DIN

Power

Air Operated

Seats

Polypropylene

Size

Fluid Inlet

Air Exhaust

3/4" NPT(F)

Fluid Section

Polypropylene

Fluid Outlet

Flow Rate

189 LPM

Air Inlet

1/2" NPT(F)

Max Temperature

66 Degrees Celsius

Noise Level

90 dBa

Fluid Pressure Range

Max: 125 PSI

Air Pressure Range

20-125 PSI

Max Solids

3.2mm
