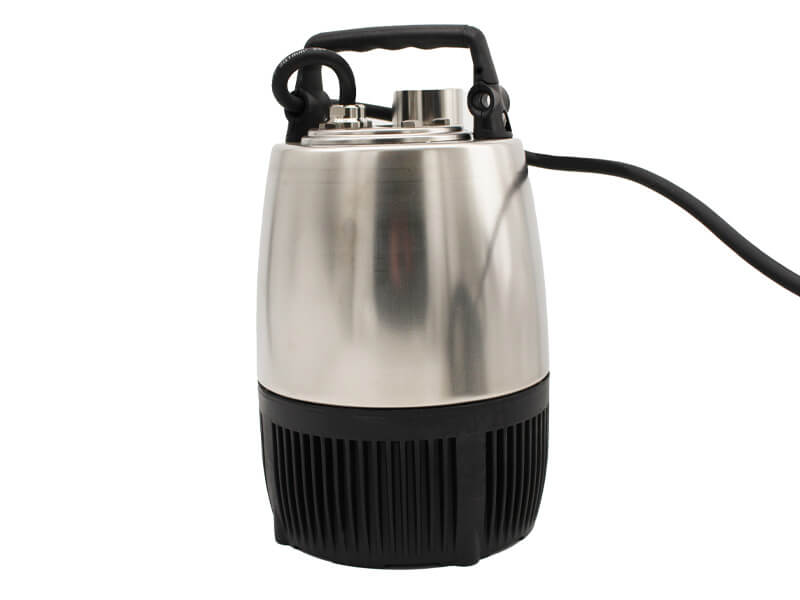

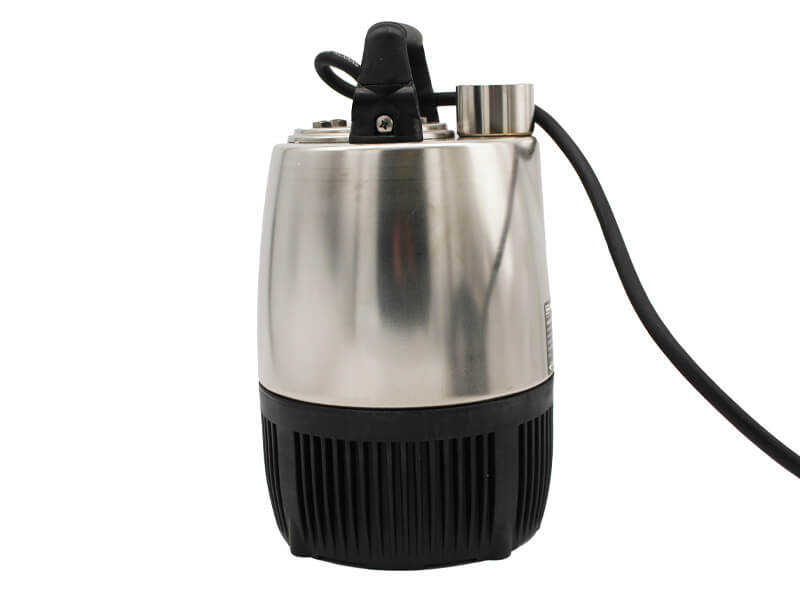

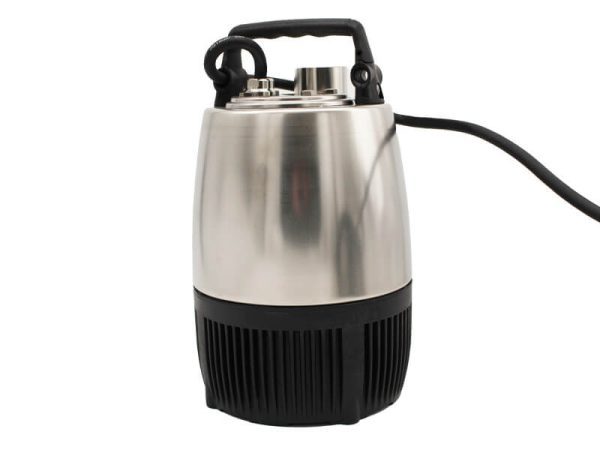

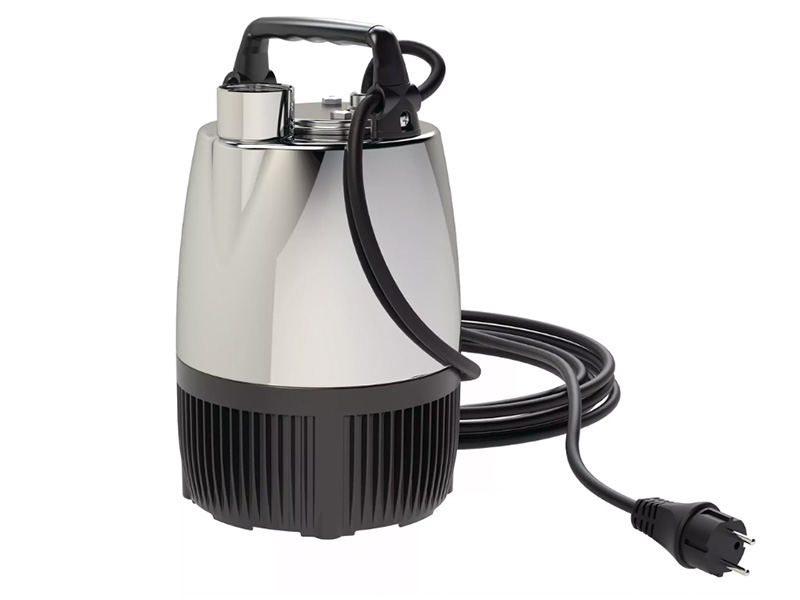

Calpeda® GXM Zero Submersible pump - 230/1/50

Call For Price

Calpeda’s GX Zero single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and suction non-return valve. Suction capability up to 1 mm from the bottom. Motor cooled by the pumped water passing between the motor jacket and the external jacket. Double shaft seal with oil chamber. The pump is fitted with a suction non-return valve which, during operation, allows to manually move the pump to several points in the room and draw water up to 1 mm avoiding that the pump loses its priming.

Product Details

  • Brand: Calpeda
  • Part Number: GXM-ZERO
  • Pump Code: 76U01000000
  • Family: GXM
  • Range: GXM
  • Power Source: Electric
  • Fluid Outlet: 1 1/4"
  • Porting: BSP
  • Max Solids: 3mm
  • Material: Stainlesss Steel
  • Motor Details: 230/1/50
  • kW : 1.1
  • Pump Orientation: Vertical
  • Float Switch: Without Float Switch
  • Number Of Poles: 2
  • Mechanical Seal: Ceramic alumina - Carbon - NBR

Applications

  • For clean water containing solids up to 3mm grain size.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.
