Graco D150A1 With PVDF wetted body and PTFE diaphragms (1/4″ – NPT)

Original price was: £646.80.Current price is: £486.00. Inc VAT

Excluding VAT: £405.00

Free UK Shipping

Please contact us to purchase this pump, as a compliance form will need to be completed.

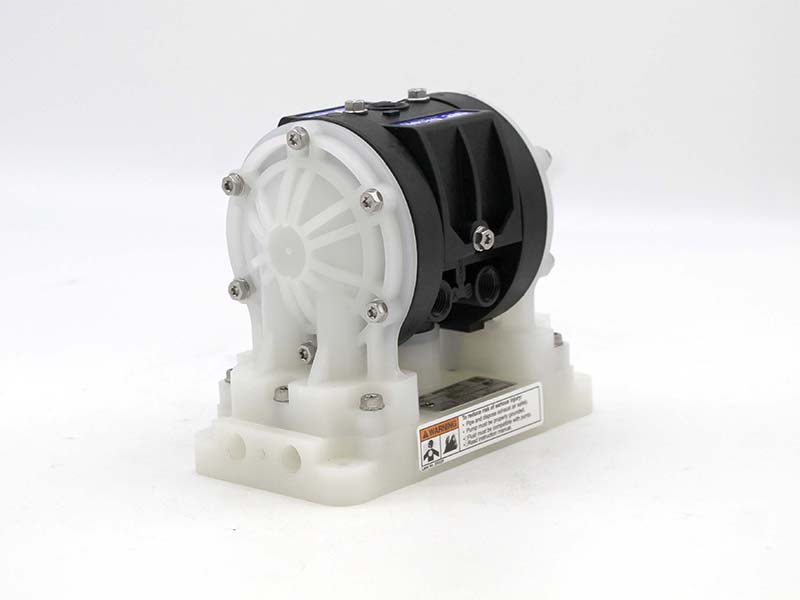

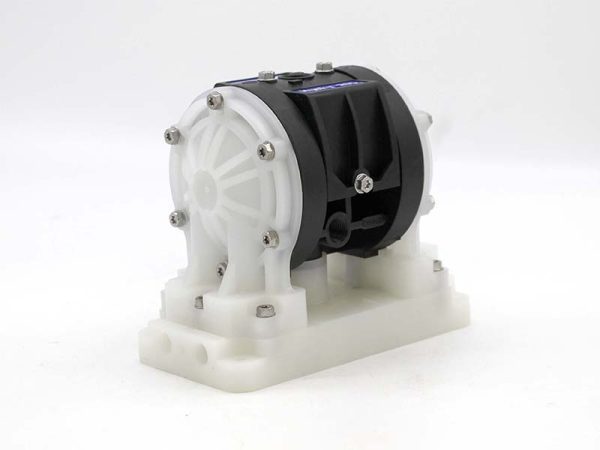

The Husky 205 air-operated diaphragm pump features spring check valves for superior priming in any mounting configuration.

Product Details

  • Brand: Graco
  • Part Number: A1
  • Pump Code: D150A1
  • Family: Husky
  • Power Source: Air Operated
  • Max Flow Rate: 19 LPM
  • Seats/Balls/Diaphragms: Poppet Valves/PVDF/PTFE
  • Body Material: PVDF
  • Centre Section: Polypropylene
  • Fluid Outlet: 1/4"
  • Porting: NPT/BSPT Hybrid
  • Air Inlet: 1/4"
  • Max Solids: 1.5mm
  • Material: PVDF

Resources

Datasheet
Chemical Guide

Parts / Repair Kits

Valve Ball Kit: D010A0
Diaphragms Kit: D01001

Fluid Section Repair Kit: D010A1
Air Section Repair Kit: 238853
Filter Reguator: P391B4-604
