Home Graco AODD Husky Graco Husky 205 Graco Husky 205 Diaphragm Pump 1/4 Inch NPT PVDF / PTFE – D250A1

Sale

Graco Husky 205 Diaphragm Pump 1/4 Inch NPT PVDF / PTFE – D250A1

Name: Graco Husky 205 Diaphragm Pump 1/4 Inch NPT PVDF / PTFE - D250A1
SKU: D250A1
Availability: InStock

Original price was: £536.00.Current price is: £376.00.

£376.00 Ex VAT

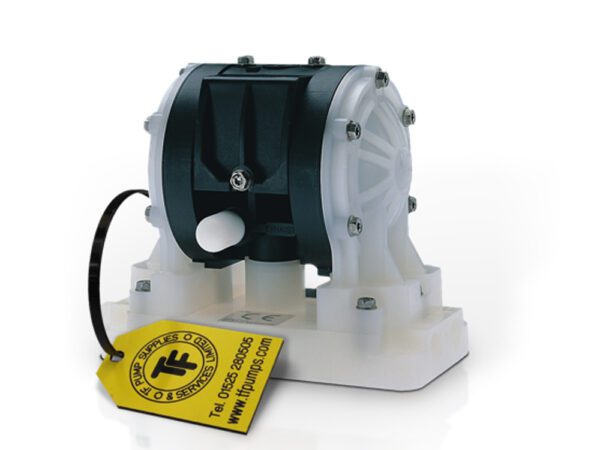

Graco Husky 205 1/4 inch PVDF diaphragm pump with hybrid NPT/BSP threaded ports, PVDF check balls and PTFE diaphragms, PTFE-encapsulated FKM o-rings, and a polypropylene centre section with solenoid ports for remote operation. Flow rates up to 18.9 LPM. Part Number: D250A1

Product Overview

Brand

Graco

Family

Husky

Product Type

Pump

Pump Type

Diaphragm

Range

Husky 205

Part Number

D250A1

Pump Code

205F-PP01DF5-PVPTPT-FK

Resources

Technical Specifications

Balls

PVDF

Body Material

PVDF

Centre Section

Polypropylene, Remote

Diaphragms

PTFE

Porting

NPT / BSP Hybrid Thread

Power

Air Operated

Seats

No Seats / Guides

Size

1/4"

Fluid Inlet

1/4"

Air Exhaust

1/4"

Fluid Section

PVDF

Fluid Outlet

1/4"

Flow Rate

18.9 LPM

Air Inlet

1/4"

Max Temperature

93 Degrees Celsius

Noise Level

84.5 dBa

Fluid Pressure Range

Max: 100 PSI

Air Pressure Range

20-100 PSI

Max Solids

1.5mm
