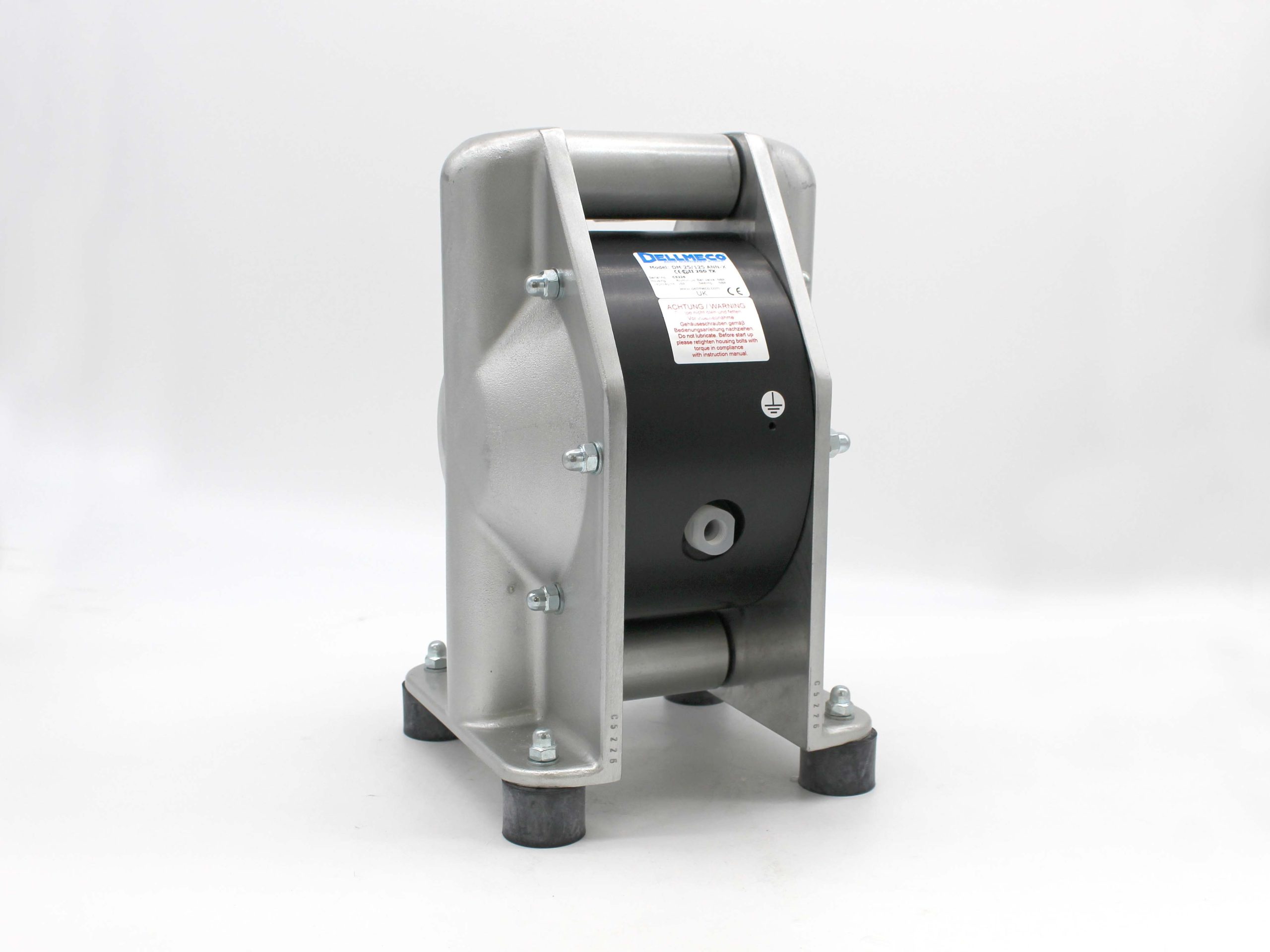

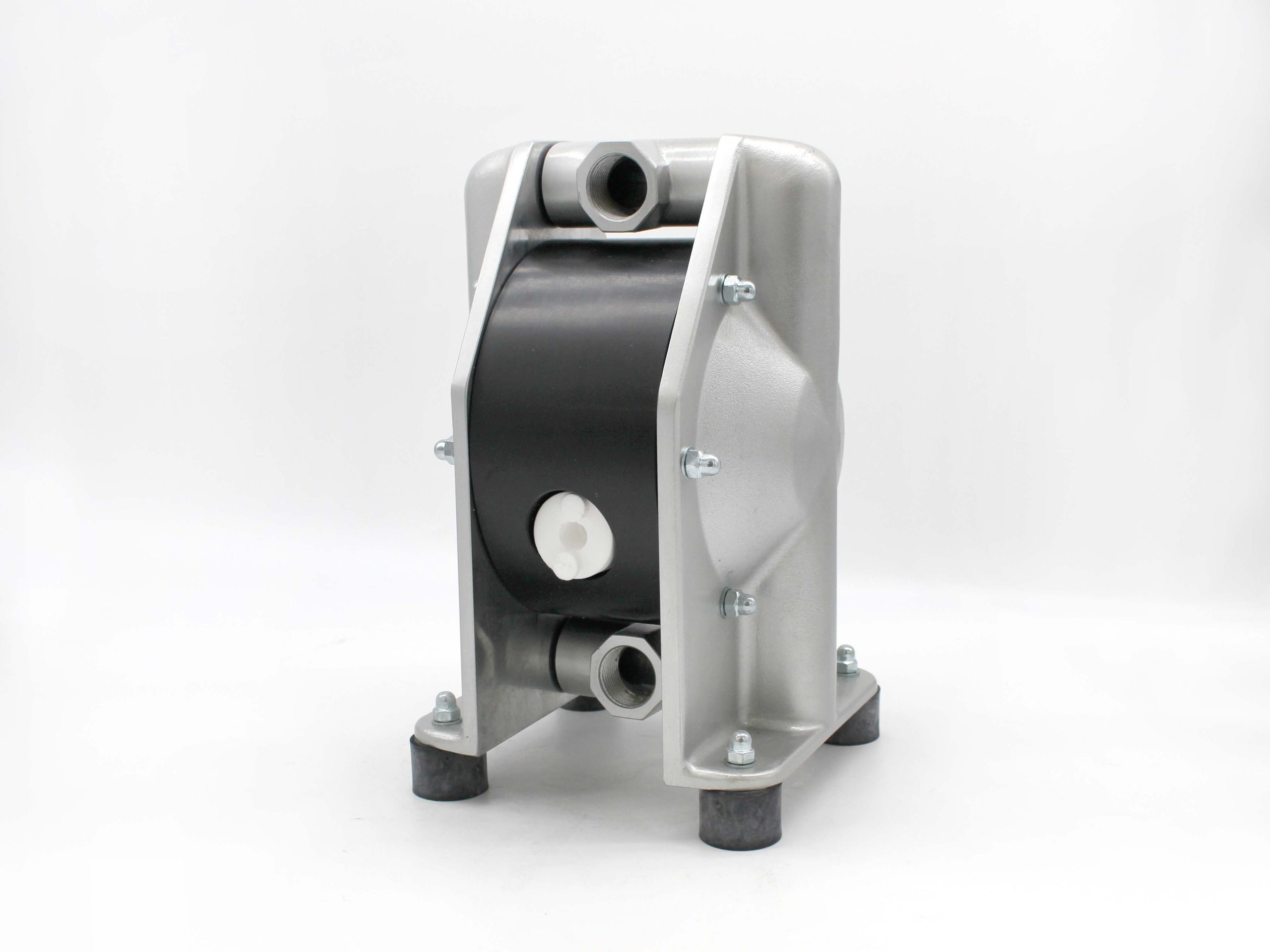

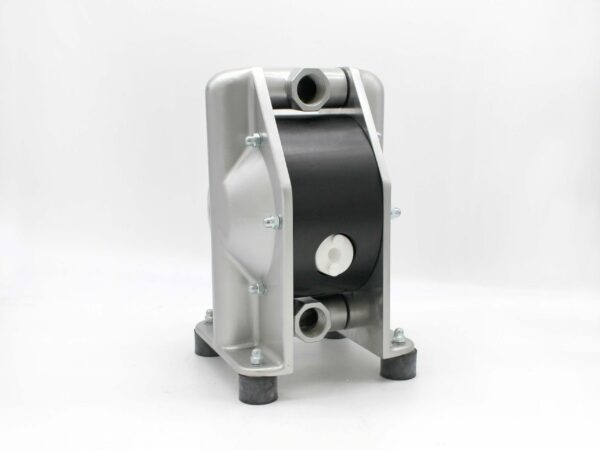

Dellmeco DM25/125-ANN-X With Aluminium wetted body and Nitrile diaphragms (1″ – BSP)

Original price was: £993.60.Current price is: £895.20. Inc VAT

Excluding VAT: £746.00

Free UK Shipping

Dellmeco DM series is a range of unique, compact and versatile pumps combining high-spech with proven reliability and quality. They are positive displacement, low shear, gentle handling pumps that are suitable for a wide range of applications, with long-life diaphragms with no metal parts in contact with the media.

Product Details

  • Brand: Dellmeco
  • Part Number: /125-ANN-X
  • Family: Cast Aluminium
  • Power Source: Air Operated
  • Max Flow Rate: 125 LPM
  • Balls/Diaphragms: NBR/NBR
  • Body Material: Aluminium
  • Centre Section: Conductive Polyethylene
  • Fluid Outlet: 1"
  • Porting: BSP
  • Air Inlet: 1/4"
  • Max Solids: 6.35mm
  • Material: Aluminium
Atex Rated

Resources

Datasheet

Parts / Repair Kits

Valve Ball : 1-25-60-10
Diaphragms : 1-25-50-10

Fluid Section Repair Kit: SET1-DM25-ANN
Air Section Repair Kit: SET2-DM25-ANN
Filter Reguator: P391B4-604
