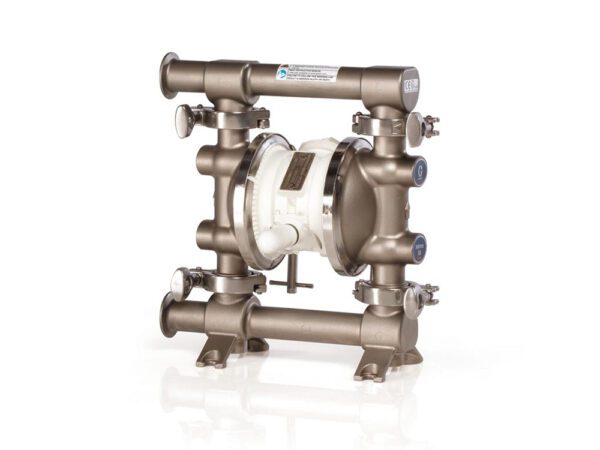

Graco¨ FD5622 Saniforce¨ 515T (1 1/2") Diaphragm Pump With Polypropylene Centre Section and Stainless Steel Body (Stainless Steel Seats

Graco FD5611 With Conductive Polypropylene wetted body and PTFE diaphragms (1″ – Tri-Clamp)

Original price was: £2,271.60.Current price is: £1,818.00. Inc VAT

Excluding VAT: £1,515.00

Free UK Shipping

Graco’s SaniForce 515 air-operated double diaphragm sanitary pump provides a solution to customers needing a pump with lower flow rates, a quick knock-down design for easy cleaning and a low cost of ownership – ideal for the food processing and personal care markets. Popular applications include transferring flavourings, purees, sauces and other low to medium viscosity materials.

Product Details

  • Brand: Graco
  • Part Number: 11
  • Pump Code: FD5611
  • Family: Saniforce
  • Range: Saniforce
  • Power Source: Air Operated
  • Max Flow Rate: 61 LPM
  • Seats/Balls/Diaphragms: Stainless Steel/PTFE/PTFE
  • Body Material: Sanitary Stainless Steel
  • Centre Section: Polypropylene
  • Fluid Inlet: 1"
  • Fluid Outlet: 1"
  • Porting: Tri-Clamp
  • Air Inlet: 1/4"
  • Max Solids: 2.38mm
  • Material: Stainless Steel
Atex Rated FDA Approved

Resources

Manual
Chemical Guide

Parts / Repair Kits

Valve Seat Kit: 15H406
Valve Ball Kit: 112359
Diaphragms Kit: 253224

Fluid Section Repair Kit: FK5113
Air Section Repair Kit: 241657
Filter Reguator: P391B4-604
