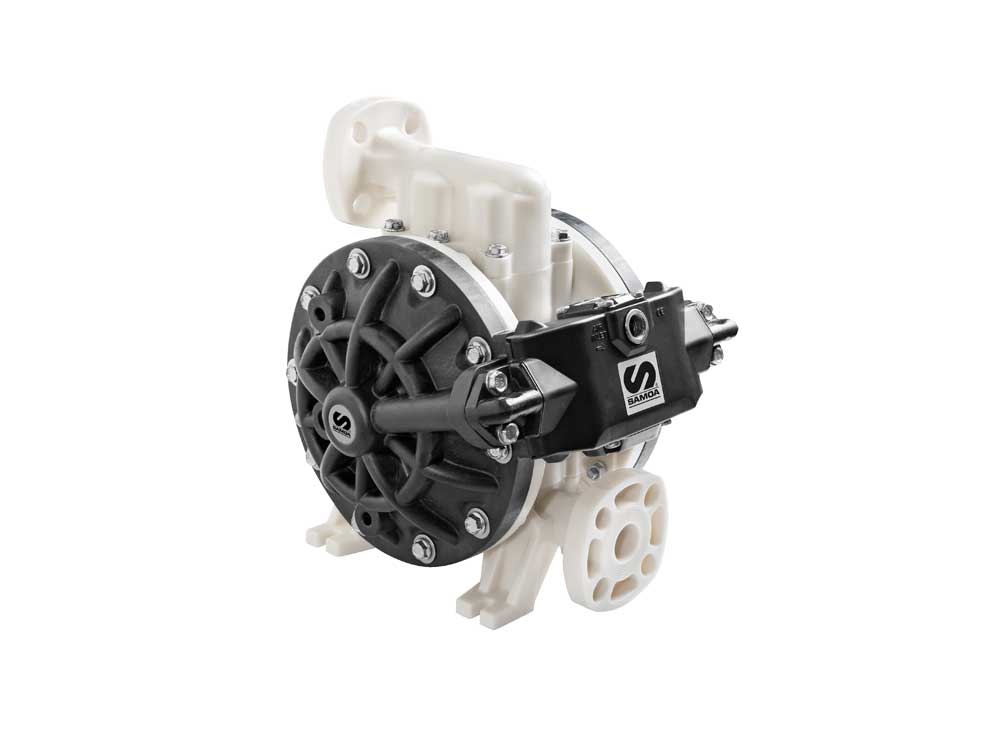

Samoa DirectFlo Diaphragm Pump DP200PPSEMTMFAS Polypropylene Body With Santoprene Diaphragms – 1″
£1,344.00 Inc VAT
Excluding VAT: £1,120.00
Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. These pumps are designed for maximum performance and efficiency in high flow applications. The plastic range of pumps are recommended for some submersible applications and aggressive atmospheres.
This pump is an ATEX certified pump and is available for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95°C)
Product Details
- Brand: Samoa
- Part Number: 0PPSEMTMFAS
- Pump Code: DP200PPSEMTMFAS
- Family: DirectFlo
- Range: DP200
- Air Pressure Range: 1.5 - 8 bar
- Seats/Balls/Diaphragms: EPDM/PTFE/Santoprene
- Body Material: POLYPROPYLENE
- Fluid Inlet: 1" DIN PN-10 DN25 & ANSI B16.6 150# Flange
- Fluid Outlet: 1" DIN PN-10 DN25 & ANSI B16.6 150# Flange
- Air Inlet: 3/8" NPSM (F)
- Max Solids: 6mm
Suitable For
- Water Based Fluids, Coatings and Adhesives
- Diluted Mild Alkali’s and Acids
- Alcohols
Applications
- Unloading
- Transfer
- Dispense
- Feed
- Supply
- Batching
- Blending
- Dosing
- Injection
