Whether you’re managing residential water supply, industrial distribution networks, or emergency water transfer, selecting the right pump is crucial for reliable and efficient operation. With a wide variety of pumps available, the decision-making process can feel overwhelming. This guide covers the types of water supply and distribution pumps we offer to help you find the perfect solution for your needs. For further information or specific questions, please contact us on +44 1332 913500.
When selecting a water supply or distribution pump, these six factors determine the right choice:
How much water do you need to move per minute? Measure in LPM (Litres Per Minute), GPM (gallons per minute), or m³/hr (cubic meters per hour). A home might need 20-50 LPM, while a commercial building could need 500+ LPM.
How high does the water need to travel, and what pressure is needed at the point of use? Garden irrigation might need 2-3 bar; a tall building could need 5-6 bar or more. This determines whether you need a simple pump or a booster set.
Where is the water coming from? Wells or boreholes require submersible pumps. Mains supply or elevated tanks allow surface-mounted pumps. Surface water sources may need self-priming capability. Your source type determines the pump category.
Is the water clean or does it contain sediment and solids? Mains water is clean; borehole or flood water may contain particles. Some pumps handle solids up to 10mm, others handle big solids well over 20mm. Exceeding this rating causes clogging and failure.
Will the pump run intermittently (residential home, occasional use) or continuously (commercial building, 24/7 operation)? Intermittent-duty pumps won’t survive continuous operation. This fundamentally affects motor type and sizing.
What power is available at your site, and where will the pump be installed? Single-phase (230V) for homes, three-phase for industry. Indoor pump houses offer flexibility; outdoor installations need weather protection. Remote locations may need engine-driven options.
We’ve broken our recommendations down by application. Jump to the one that fits your needs:
Perfect For Homes, Small Properties & Rural Dwellings
Residential water supply applications typically require modest flow rates with consistent, reliable pressure. These applications often involve transferring water from storage tanks, boreholes, or mains supply to household points of use. Reliability and low noise are important factors for domestic installations.
Submersible Borehole Pumps are ideal for homes drawing water from boreholes or deep wells. These pumps are submerged directly in the water source, eliminating priming issues and allowing effective suction lift from considerable depths. They’re efficient, compact, and ideal where space is limited.
 |

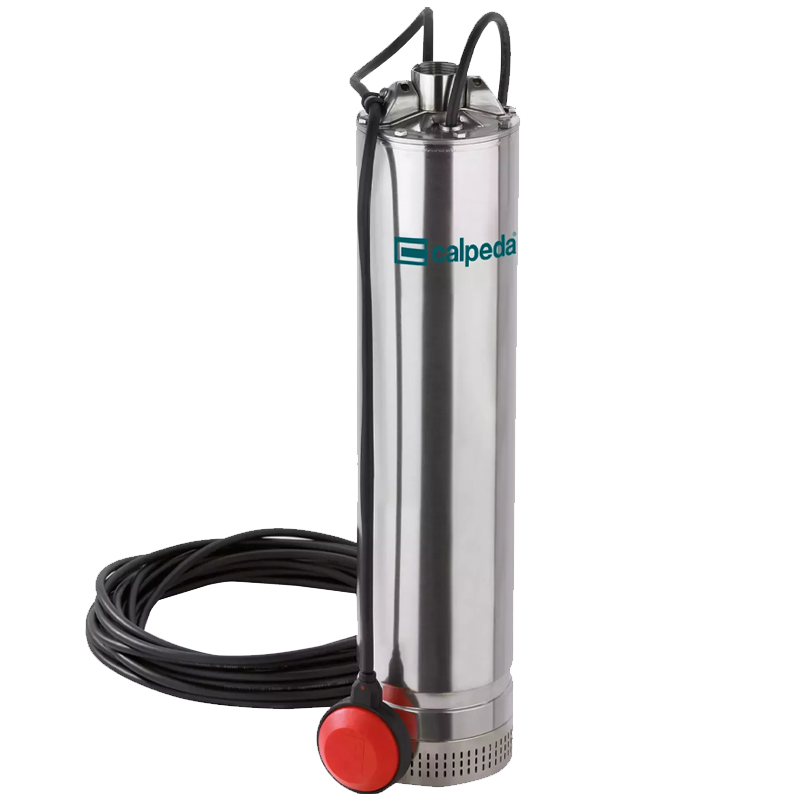

Calpeda MPS and MXS Series Water supply from wells, tanks, or reservoirs. Domestic, civil, and industrial applications including garden use, irrigation, and rainwater harvesting. |
 |

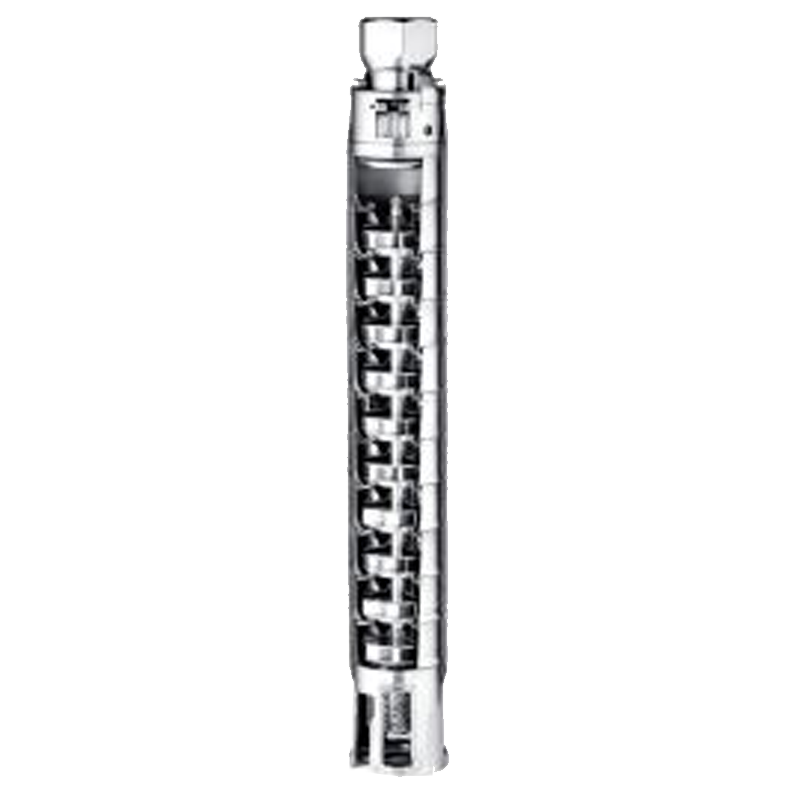

Ebara 4BHS, 4WN, IDROGO, SB, and SF6 Series Clear water extraction, pressure boosting, and domestic water supply. Agricultural and industrial applications with various pressure and flow rate options. |
 |

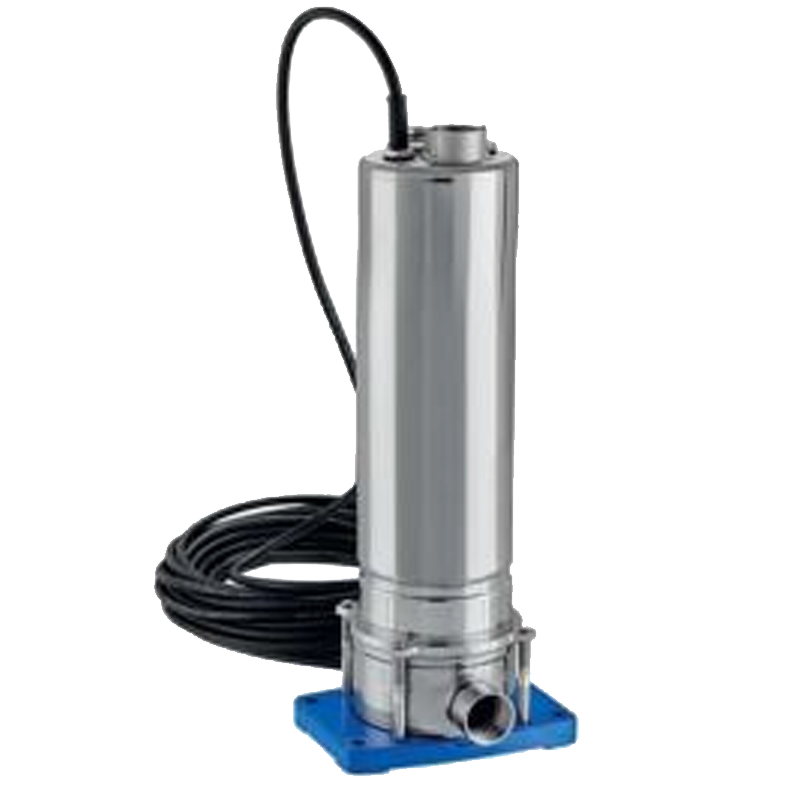

Lowara GS and Scuba Series Well water extraction, pressure boosting, and sprinkler irrigation. The Scuba DRY version is ideal for surface boosting applications. |
 |

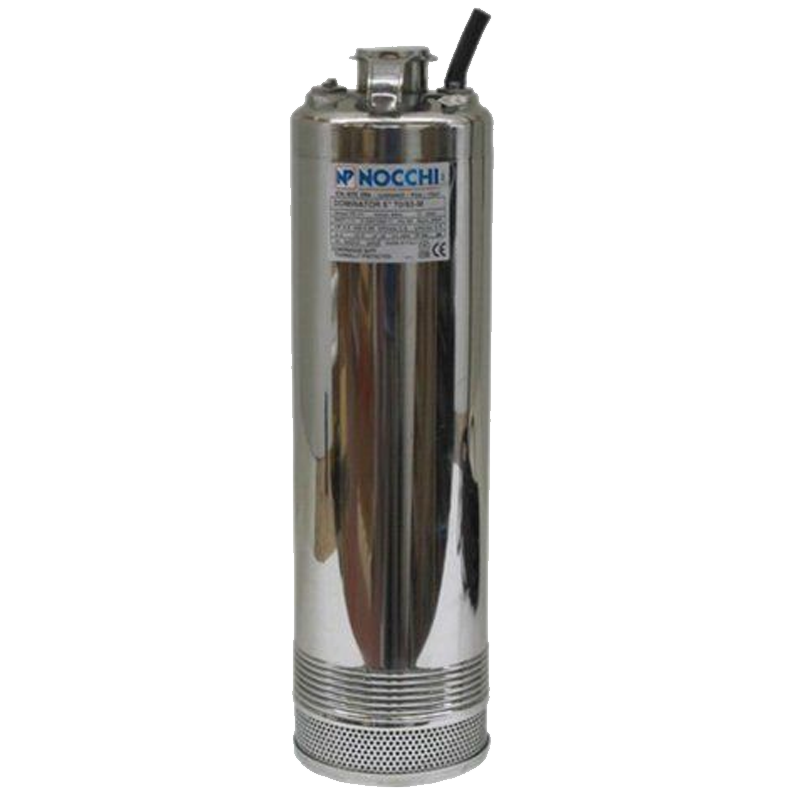

Pentair Dominator Lifting water from traditional wells and small automatic garden irrigation systems. |
 |

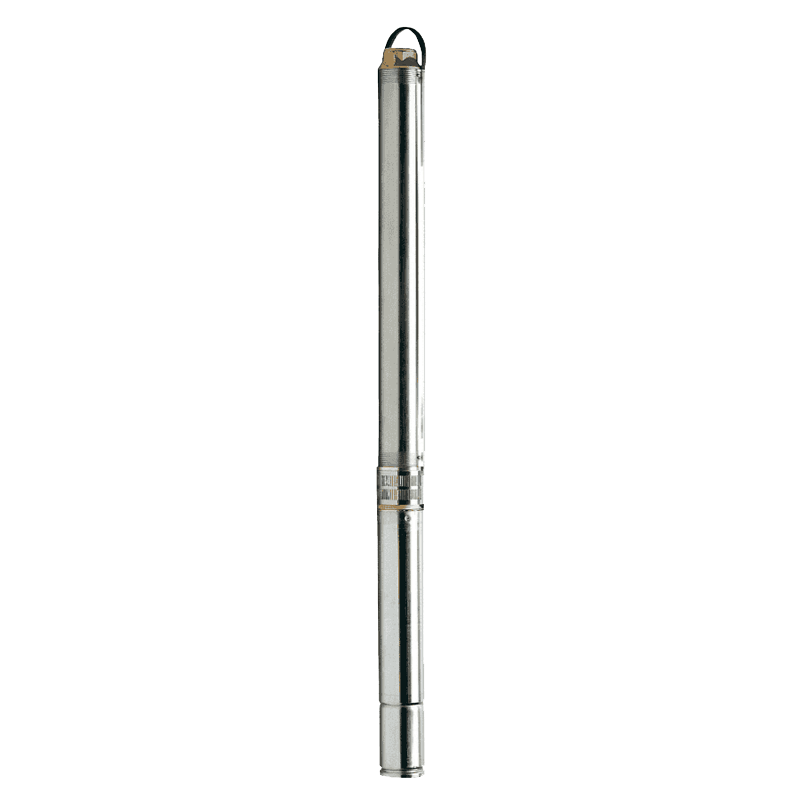

Pentax 3S Series Compact solutions for 3″ well installations suitable for residential and small industrial water systems. |
Key benefits: Self-priming and capable of deep water extraction • Quiet operation • Available in various sizes • Single-phase electric for standard household power • Stainless steel options available
Perfect For Commercial Buildings, Industrial Facilities & Municipal Networks
Commercial and industrial water distribution demands high reliability, consistent pressure delivery, and the ability to handle large volumes. These applications include office buildings, factories, municipal water networks, and large residential complexes.
Centrifugal Pumps are the workhorse of commercial water distribution. They provide smooth, consistent flow with minimal pulsation and are well-suited for clean water transfer over long distances.
 |

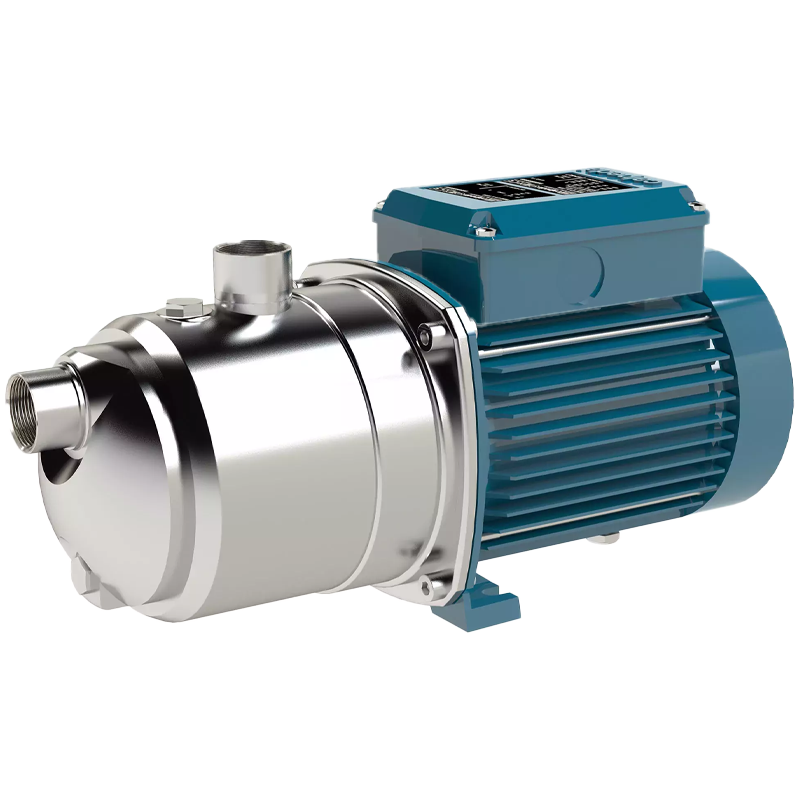

Calpeda A, CA, MXA, and N Series Water supply and network pressure boosting. N Series ideal for water supply, heating, air-conditioning, and firefighting with excellent flow and head capabilities. |
 |
Ebara 2CDX, 3D, 3L, 3M, 3P, and 3S Series Industrial-grade centrifugal pumps for water supply to civil, agricultural, and industrial plants with pressure boosting, firefighting capability, and cooling system integration. |
 |
Lowara BG, CA, Jet, LN, and NSCS Series Water distribution, pressure boosting, irrigation, and HVAC applications. LN and NSCS Series excel in heating and cooling systems. |
 |

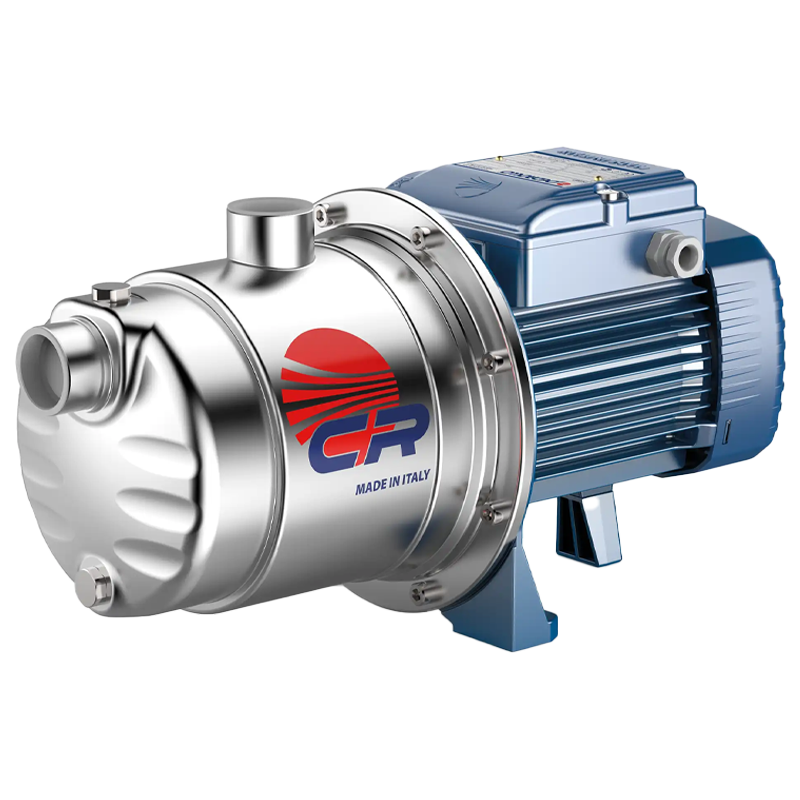

Pedrollo 2-5CR, 2CP, CP, HF, JCR, JSW, and NGA Series Budget-friendly to premium options. HF Range ideal for high-flow, medium-pressure applications. NGA Range handles liquids with solids up to 20mm. |
 |

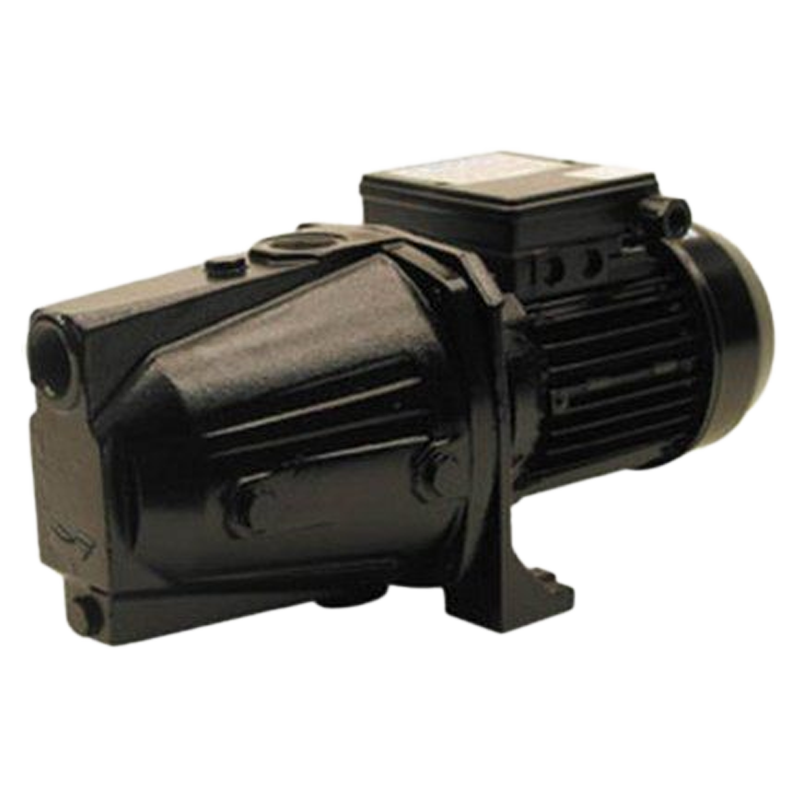

Pentair Jet Boosting household and small commercial water pressure with self-priming capability. |
 |

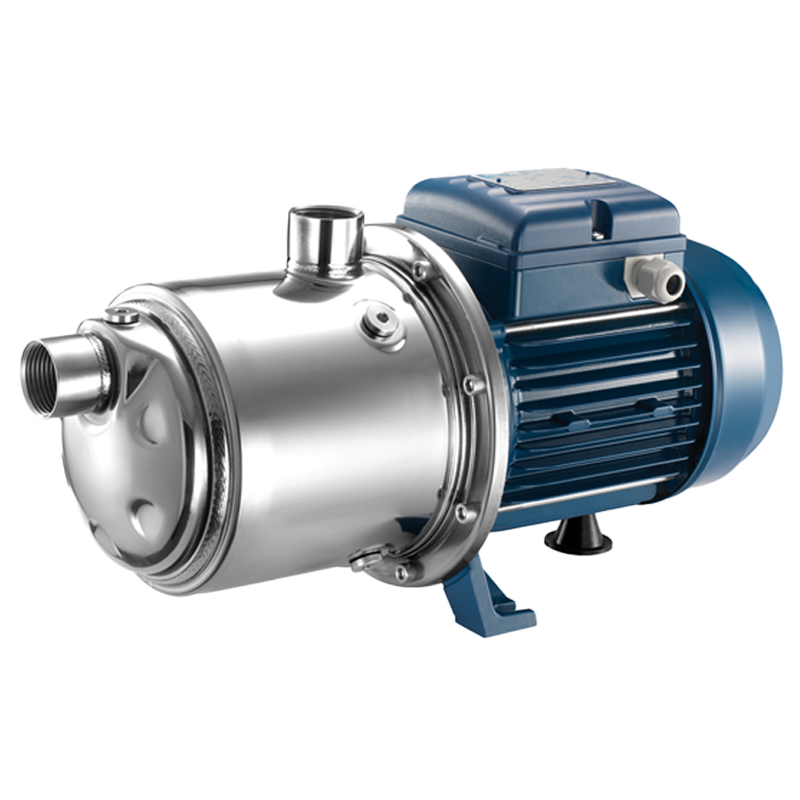

Pentax Ultra WRAS-approved stainless steel multistage pumps for premium water treatment and boosting applications. |
Multistage Pumps are excellent for applications requiring high head pressure combined with significant flow rates. These are commonly used in tall buildings, hillside communities, or situations where water must be lifted considerable heights.
 |
Calpeda MGP, MXH, and MXP Series Compact multistage solutions for water supply, domestic use, and irrigation. |
 |

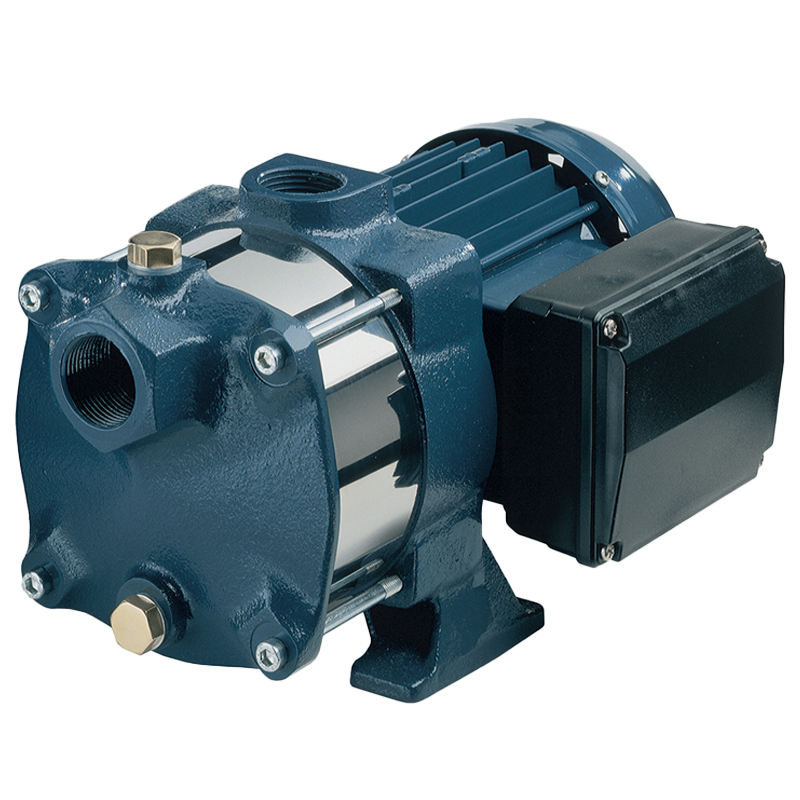

Ebara Compact, CVM, EVM, Matrix, and MULTIGO Series Pressure boosting systems, water distribution, heating/air conditioning, and complex water treatment installations. |
 |
Lowara E-HM, E-NSC, E-SH, E-SV, and LN Series Residential water supply, HVAC integration, fire protection, and water treatment plants with capability for moderately aggressive liquids. |
Key benefits: High efficiency and smooth operation • Capable of handling large flow rates • Low operational noise • Cost-effective for continuous operation • Available in single or three-phase • Multiple speed options for optimized energy consumption
Perfect For Maintaining Consistent Pressure in Distribution Networks
Booster sets are pre-assembled pump systems designed to maintain consistent pressure throughout water distribution networks. They automatically activate when system pressure drops and shut off when adequate pressure is restored.
 |
Calpeda E-IDOS and Meta Series Compact booster sets for residential water supply and garden irrigation. Perfect for homes experiencing inconsistent mains pressure. |
 |

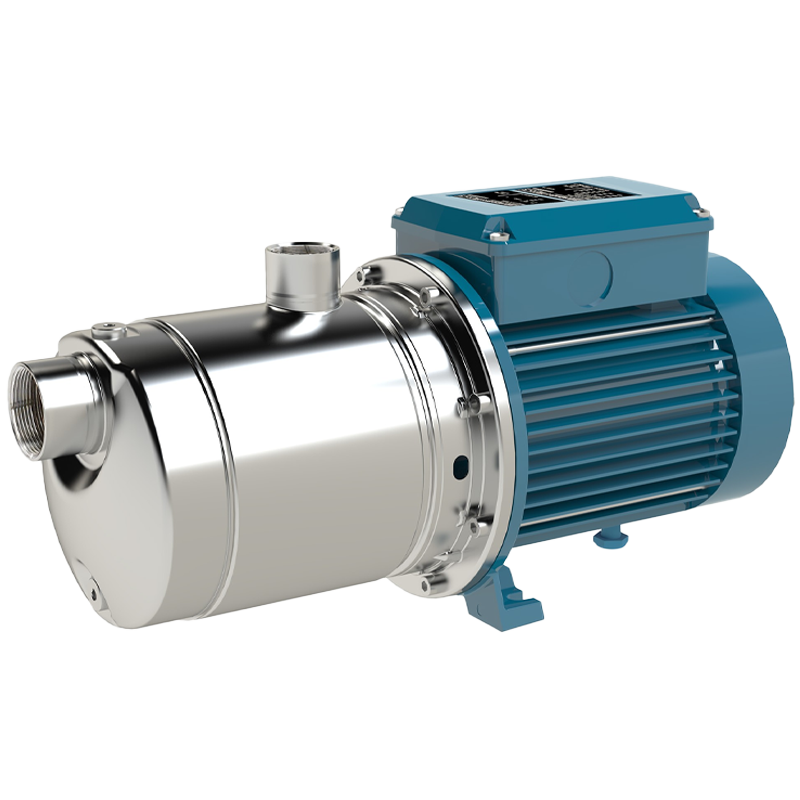

Calpeda MXH, MXV, and MXP Series Industrial-grade booster sets for water transport and distribution. Excellent for hot/cold water production and water treatment applications. |
 |

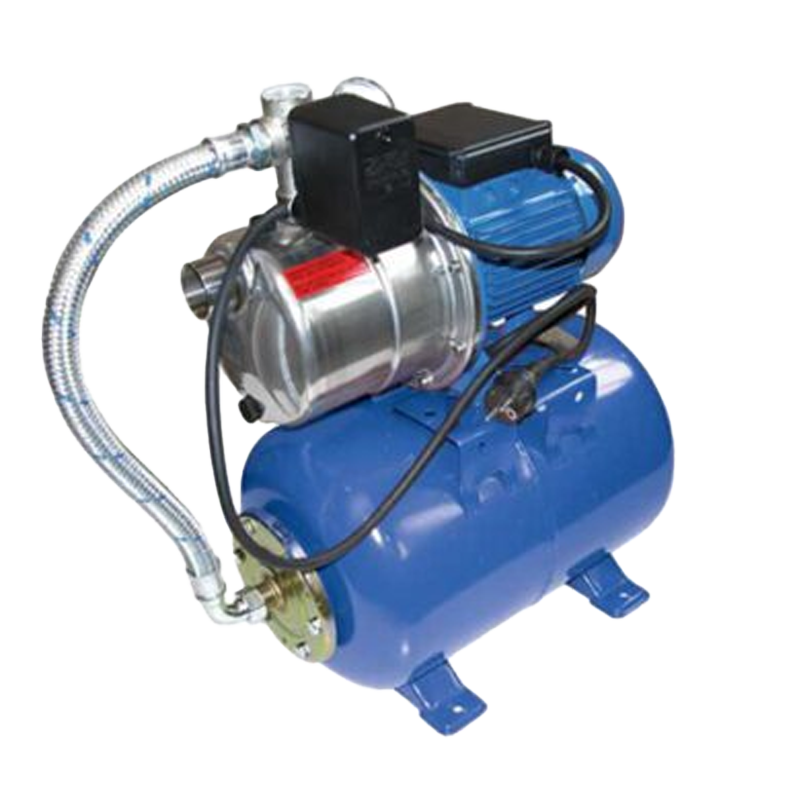

Ebara AGA Series Domestic pressurisation booster ideal for small-scale garden irrigation and vehicle washing. |
 |

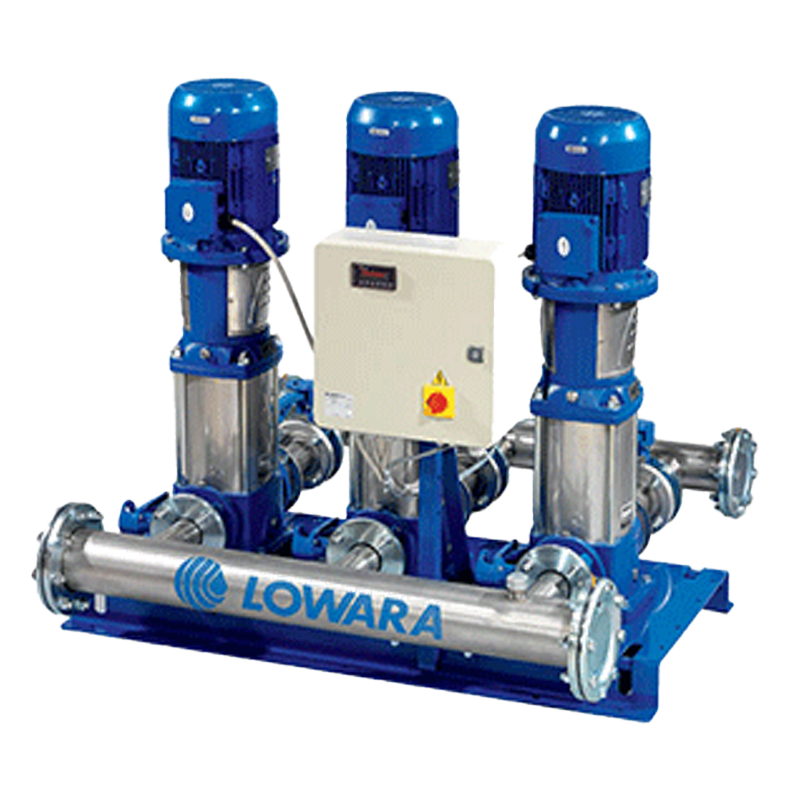

Lowara GMD Compact residential water supply booster set. |
 |
Lowara SMB Series Premium pressure boosting system for residential and multi-family properties, hotels, restaurants, and industrial applications. |
Recommended for: Buildings with low mains water pressure • Extended distribution networks in hilly terrain • Industrial facilities requiring stable pressure • Commercial properties needing supplementary pressure • Multi-family residential complexes
Perfect For Farms, Smallholdings & Off-Grid Properties
Rural and remote applications often present unique challenges: limited access to mains electricity, requirement for self-priming capability, and the need for reliable operation with minimal servicing.
|
Calpeda MPS and MXS Series Proven for rainwater harvesting systems and well water extraction in agricultural settings. |
|
Ebara Series (various borehole models) Reliable options for livestock watering, agricultural water supply, and small-scale irrigation. |
|
Lowara Scuba Series Surface irrigation from ponds, lakes, ditches, or cisterns. Optional DRY version for surface boosting. |
|
Pentair Dominator Dependable well pump for traditional installations. |
 |

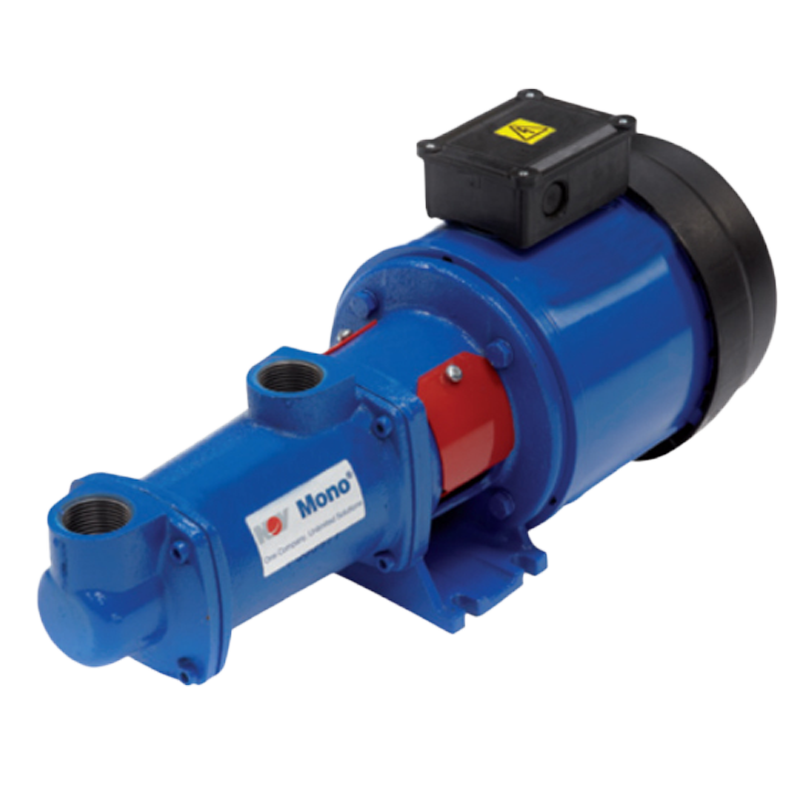

Mono M Range (Progressive Cavity) Cellar drainage, septic and cess pit emptying, garden sprinkler systems, and general water supply. Minimal servicing required in off-grid locations. |
 |

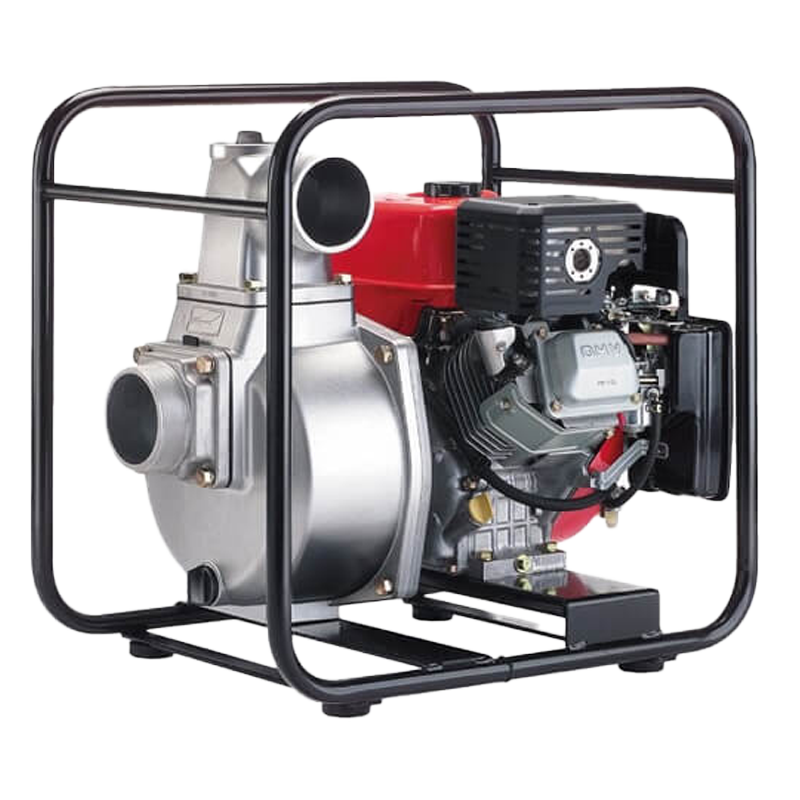

Koshin SEH Series (Engine-Driven) Petrol or diesel-powered centrifugal pump for irrigation, agriculture, pool circulation, and central clear water transfer. Perfect for emergency response. |
 |
Pedrollo PK, PKS, PQ, PQA, and PV Series (Peripheral) Simple, efficient operation for rural water distribution and agricultural settings. |
 |

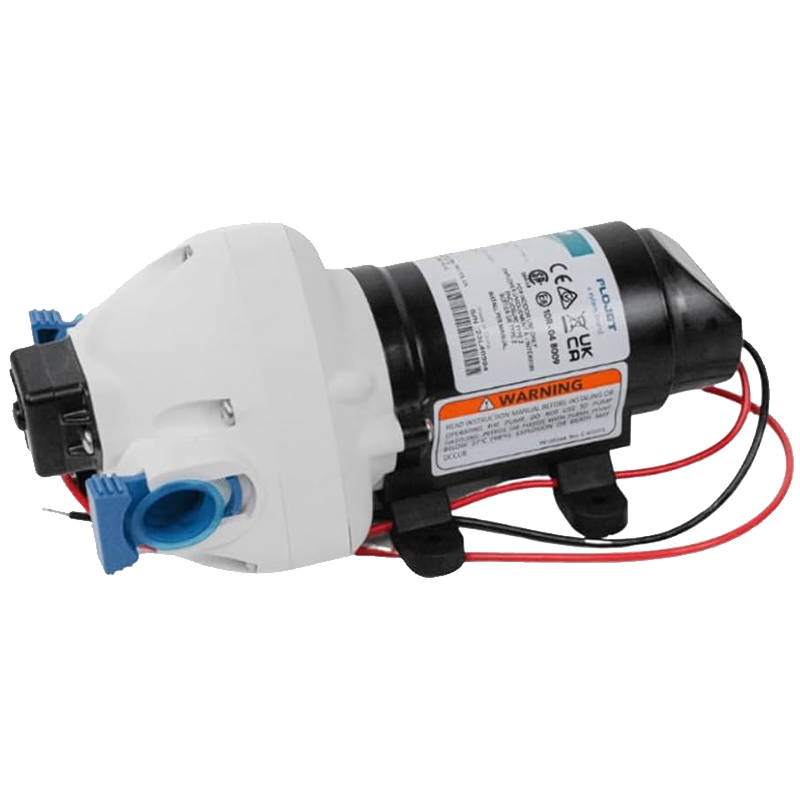

Flojet Triplex (Diaphragm) Filtration, cooling, pressure boosting, and general water supply in specialist applications requiring gentle handling. |
Key benefits: Self-priming with excellent suction lift • Simple, reliable designs requiring minimal maintenance • Various power options (electric, engine-driven) • Can handle water with varying purity levels • Portable options for temporary or emergency installations
Perfect For Rapid Water Removal, Dewatering & Emergency Response
Emergency situations demand pumps capable of handling water with high sediment content, running continuously without overheating, and operating in challenging conditions. Flood water, construction site dewatering, and emergency response all require robust, adaptable solutions.
 |

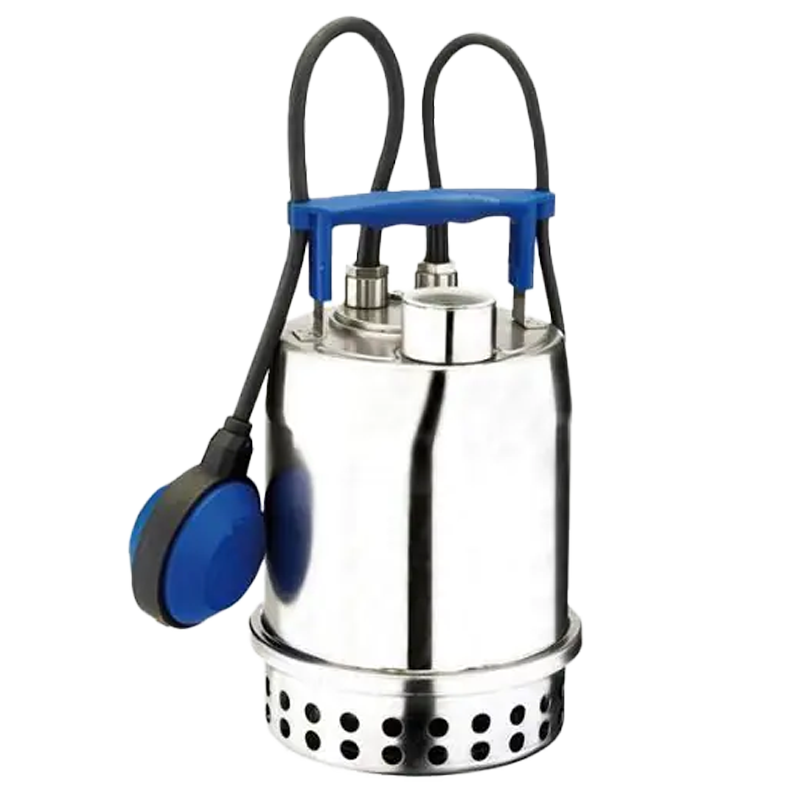

Ebara Best Box (Submersible) Compact submersible ideal for lifting water for domestic use and emergency rainwater collection. No burial needed. |
 |
Lowara DOC (Submersible) Compact stainless steel drainage pump designed for removing infiltration water and emptying sump pits, tanks, ponds, and reservoirs. Ideal for residential floodwater removal from basements and garages, with automatic operation on single-phase models. |
 |
Calpeda A Series (Centrifugal) Handles water with solids up to 15mm, making it ideal for flooded areas with sediment and debris. |
 |
Koshin PXL (Submersible) Professional “puddle sucker” pump capable of draining water down to around 1mm. Ideal for removing residual floodwater from floors, rooftops, tanks, pools, and construction sites where near-complete drainage is required. |
|
Koshin SEH Series (Engine-Driven) Mobile, self-contained rapid response option for emergency water removal without dependency on fixed power supplies. |
|
Mono M Range (Progressive Cavity) Handles various water types and sediment levels. Ideal for drainage operations and dewatering projects. |
Key benefits: Rapid deployment and operation • Handles high solids content • Continuous operation without overheating • Adaptable to various mounting positions • Low maintenance during extended emergency use • Portable options for immediate response
Beyond pump selection, several additional components ensure safe, efficient operation:
